Original price was: ₹22,488.00.₹19,700.00Current price is: ₹19,700.00.
In stock

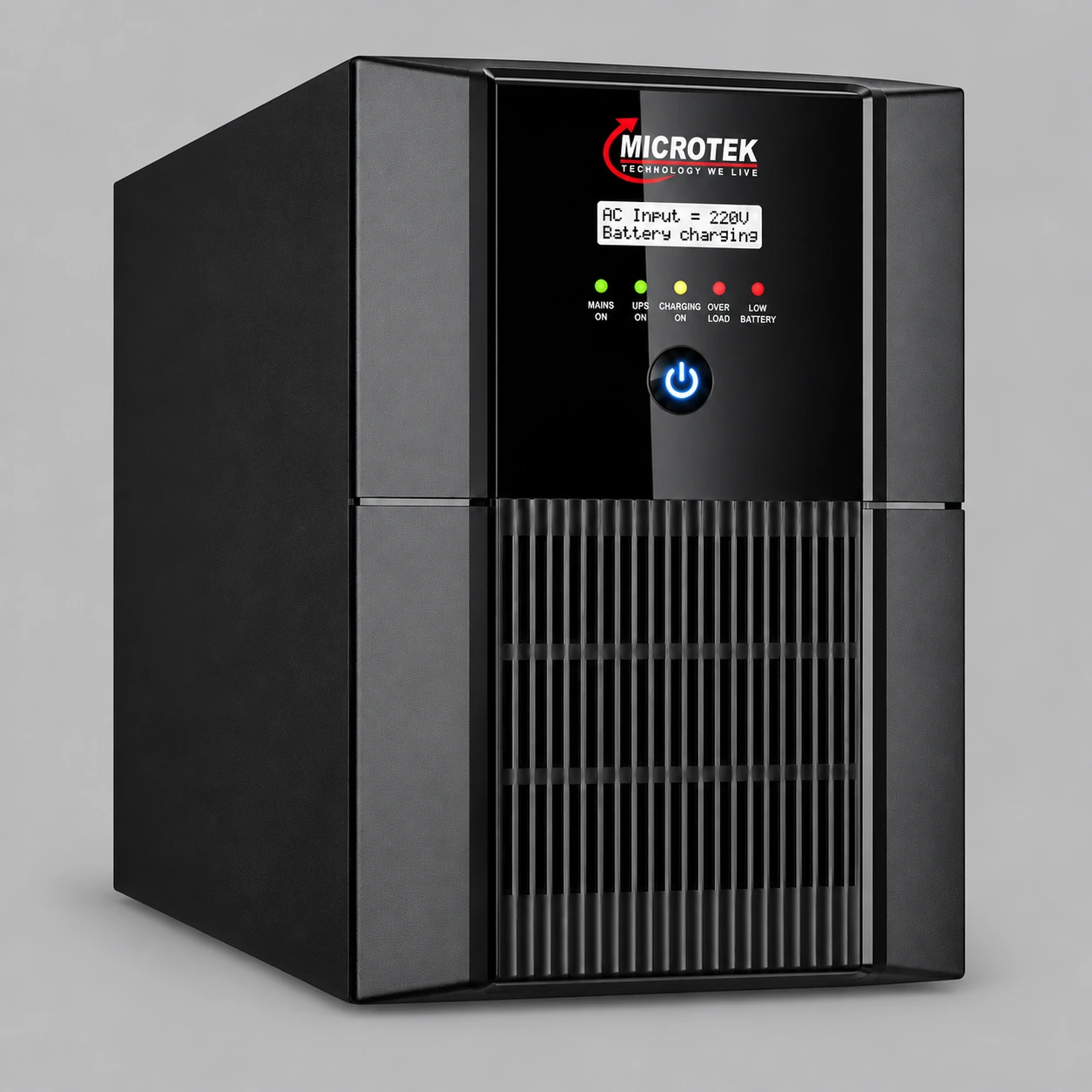

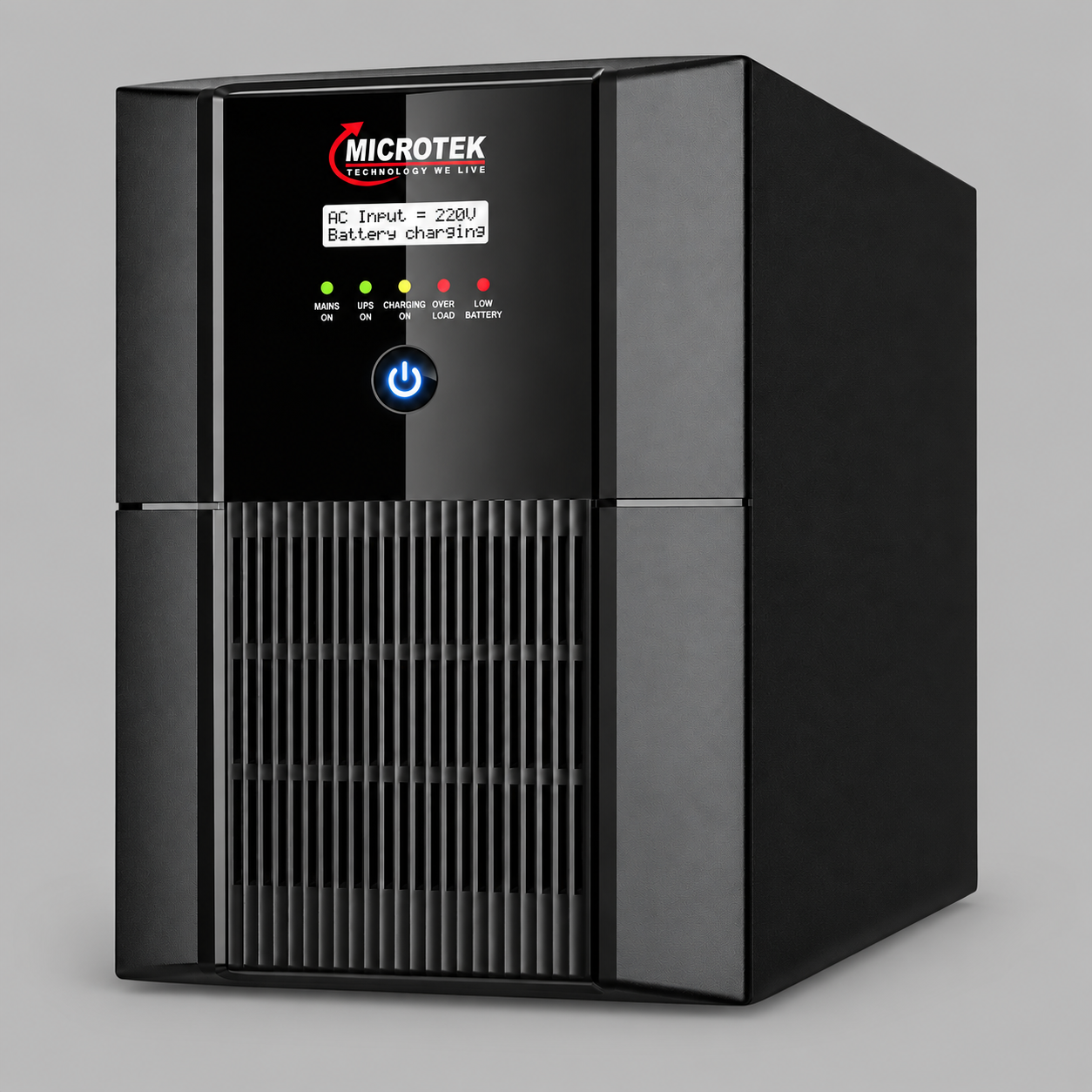

The Microtek JUMBO HOME UPS JM SW 3500+/24V is a 2.8KVA / 2240W pure sine wave UPS designed for homes and small offices. Its DSP-based control and ACEC PWM technology regulate backup output, while intelligent multistage charging manages battery charging. A battery selection switch supports tubular, standard and local batteries. Load and battery indicators, automatic switching and built-in protections help users monitor and manage everyday power backup.
| Specification | Details |
|---|---|
| Brand | Microtek |
| Product Type | Jumbo Home UPS |
| Model | JM SW 3500+/24V |
| Capacity | 2.8KVA / 2240W |
| System Voltage | 24V |
| Backup Output Waveform | Pure sine wave |
| Battery Selection | Tubular, standard and local batteries |
| Display | LCD/LED indicators |
| Generator Compatibility | Yes |
| Weight | 23.9kg |
| Dimensions (L × W × H) | 514 × 339 × 460* |
| Parameter | Details |
|---|---|
| Control Technology | DSP-based smart control with MOSFET PWM |
| Waveform Control | ACEC—Analog Compare Error Correction |
| Standard Input Voltage Range | 100–280V |
| Narrow Input Voltage Range | 180–260V |
| Output Voltage—Mains Mode | Same as input |
| Output Voltage—UPS Mode | 220V +10%* |
| Output Frequency—UPS Mode | 50Hz +0.5Hz* |
| Mains Output Waveform | Same as input |
| Mains/UPS Switching | Automatic in both directions |
| Battery Charging Current | Maximum 20A +3A* |
| Battery Charger | Boost-based PWM-controlled multistage IBM technology |
| Input Power Factor | 0.85 |
| Efficiency | >80% |
| Input Brownout Voltage | 100V +10V* |
| UPS Overload Threshold | 108% of rated capacity |
| Crest Factor | Up to 3.7 |
| System Monitoring | ASC checks critical parameters before startup and during operation |
| Peak Load Handling | PLPO—Peak Load Peak Output |
| Auto Reset | Yes |
| Bypass Switch | Rotary/rocker switch |
| Protections | Wiring fault, overload, short circuit, low battery, reverse phase and reverse battery |
| Operating Temperature | 0–45°C |
| Acoustic Noise | <60dB at 1 metre |
| Relative Humidity | Maximum 95%, non-condensing |
| Cooling | Integrated fan and heat sink |
The JM SW 3500+/24V has a rated capacity of 2.8KVA / 2240W.
Yes, it provides pure sine wave output in backup mode.
The battery selection switch supports tubular, standard and local batteries.
Yes, the model supports generator compatibility and automatic switching between mains and UPS operation.
