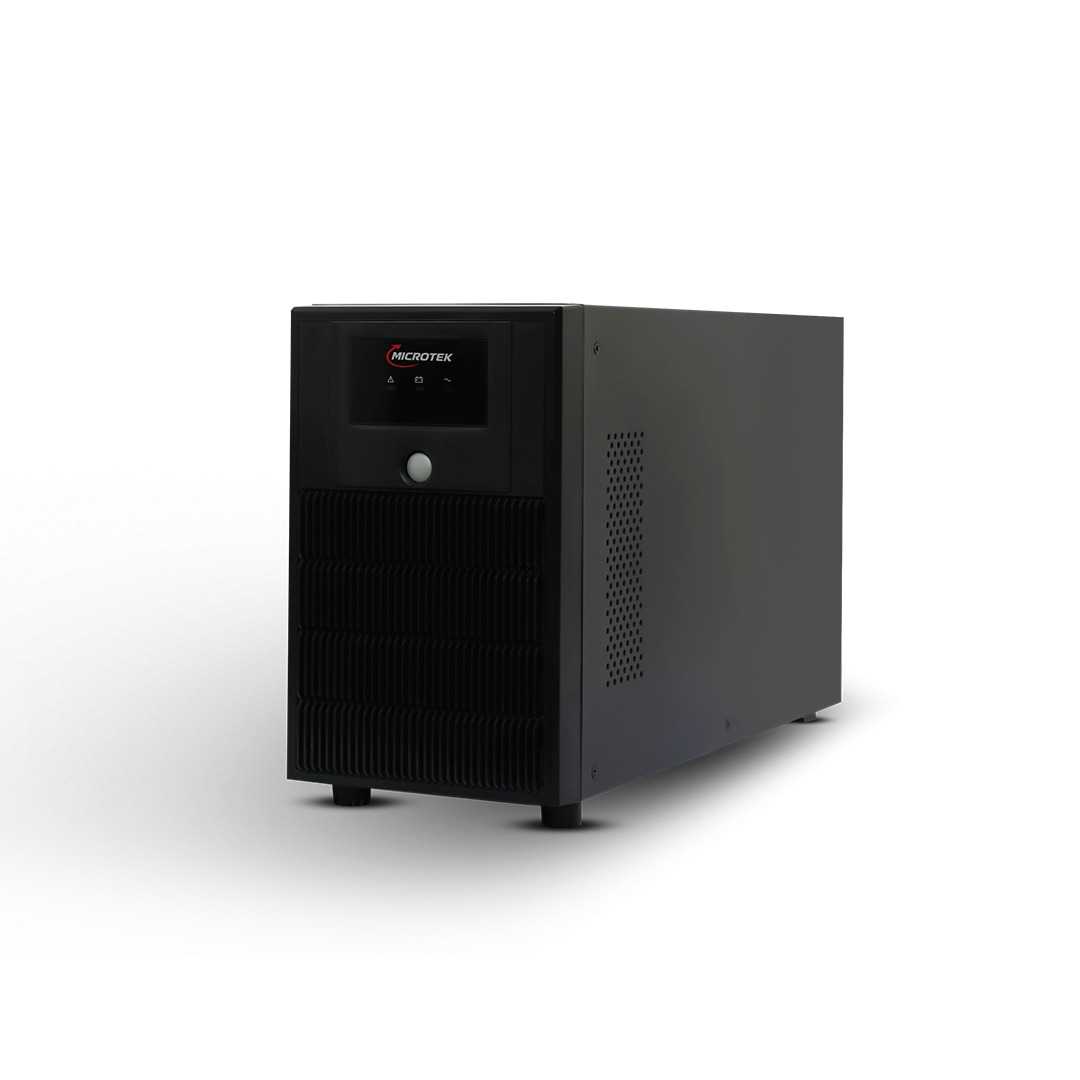

Microtek UPS DESIRE PRO+ 2000 – Reliable Power Backup & Voltage Protection

The Microtek UPS DESIRE PRO+ 2000 is a powerful 2000VA / 1200W Line Interactive UPS designed to provide reliable backup power and protection for computers and other IT equipment.

Its advanced microprocessor control ensures dependable operation, while the Boost and Buck AVR technology helps stabilize fluctuating input voltage without unnecessarily switching to battery mode.

The UPS also features selectable charging current, allowing users to adjust the charging current according to their battery configuration and requirements. Its Auto Restart function automatically restarts the UPS when AC power is restored, while the Cold Start Function allows the UPS to be switched on using battery power when mains power is unavailable.

The Simulated Sine Wave output provides suitable power backup for compatible computers and IT loads. With 24V DC external battery support, users can configure an appropriate external battery setup according to their required backup duration.

Key Features

2000VA / 1200W Capacity
Excellent Microprocessor Control for high reliability
Boost & Buck AVR for voltage stabilization
Wide 140V–300V input voltage range
Selectable charging current: 5A / 10A / 15A / 20A
Auto Restart when AC power is restored
Simulated Sine Wave output in battery mode
Off-Mode Charging
Cold Start Function
24V DC external battery system
Transfer time of approximately 4–8 ms
Protection against overload, discharge and overcharge
LED indicators for AC Mode, Battery Mode and Fault
Audible alarms for low battery, overload, battery replacement and fault conditions
Suitable for computers and IT equipment

Specification	Details
Model	UPS DESIRE PRO+ 2000
Capacity	2000VA / 1200W
UPS Type	Line Interactive UPS
Input Voltage Range	140V – 300V AC
Frequency	50 Hz
Output Voltage	220/230V AC ±10%
Transfer Time	Typical 4–8 ms
Battery Mode Waveform	Simulated Sine Wave
Battery Voltage	24V DC
Floating Charge Voltage	27.4V DC ±2%
Maximum Charging Current	5A / 10A / 15A / 20A Adjustable
Charging	Off-Mode Charging
AC Mode Indicator	Green Lighting
Battery Mode Indicator	Yellow Lighting
Fault Indicator	Red Lighting
Low Battery Alarm	Sounds every second
Overload Alarm	Sounds every 0.5 second
Battery Replacement Alarm	Sounds every 2 seconds
Fault Alarm	Continuous sound
Operating Temperature	0°C – 40°C
Relative Humidity	0–90% non-condensing
Noise Level	<40 dB
Protection	Overload, Discharge & Overcharge Protection
Dimensions (D × W × H)	395 × 145 × 220 mm
Weight	14.25 kg

Ideal Applications

The Microtek UPS DESIRE PRO+ 2000 can be used for:

Desktop Computers
Workstations
Office IT Systems
Networking Equipment
Wi-Fi & Networking Devices
CCTV & Surveillance Systems
Small Servers and IT Loads
Business and Home Office Equipment
Other compatible electronic equipment

Note: Actual backup time depends on the connected load and the capacity/condition of the external batteries used.

Protection Features

The UPS is designed with multiple protection features to help safeguard connected equipment and the UPS itself.

Overload Protection

Helps protect the UPS when the connected load exceeds its rated capacity.

Discharge Protection

Helps protect the battery from excessive discharge.

Overcharge Protection

Helps prevent excessive battery charging and contributes to longer battery life.

Voltage Stabilization

Boost and Buck AVR helps regulate voltage fluctuations and provides a more stable output to connected equipment.

1. What is the capacity of the Microtek UPS DESIRE PRO+ 2000? +

The UPS has a capacity of 2000VA / 1200W.

2. Is the UPS DESIRE PRO+ 2000 a Line Interactive UPS? +

Yes. It is a Line Interactive UPS with Boost and Buck AVR voltage stabilization.

3. What battery voltage does this UPS use? +

The UPS uses a 24V DC external battery system.

4. Can the charging current be adjusted? +

Yes. The charging current can be adjusted between 5A, 10A, 15A and 20A.
