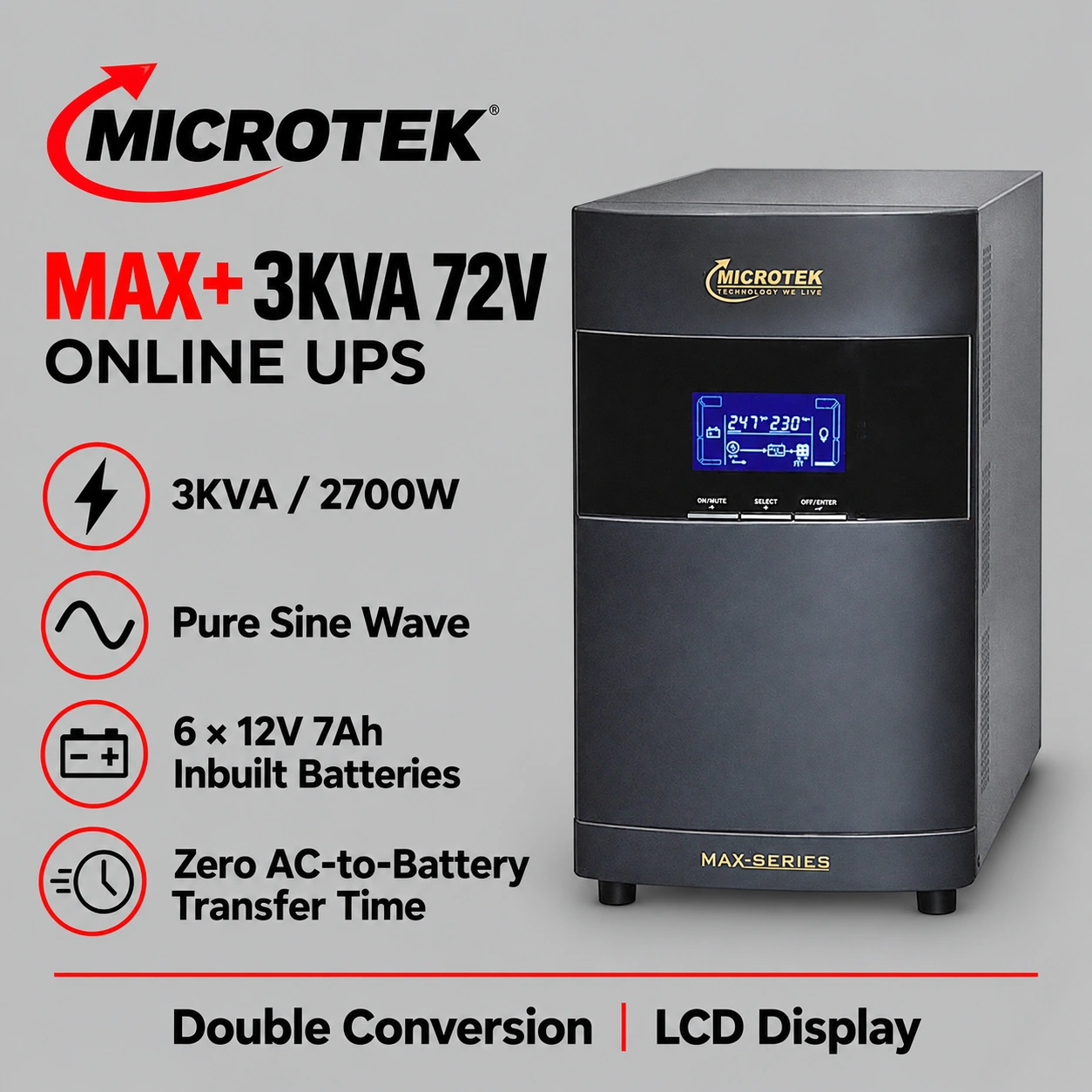

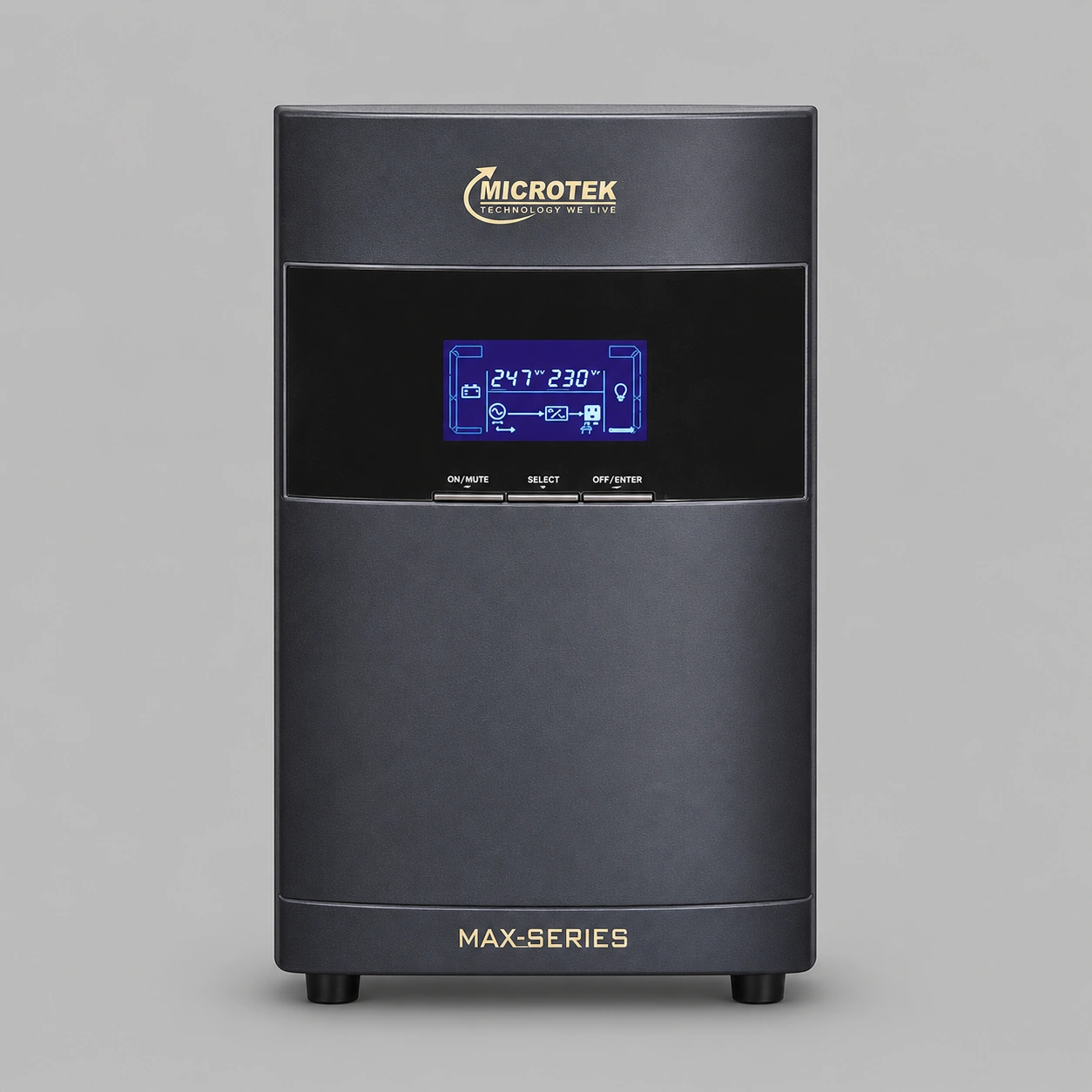

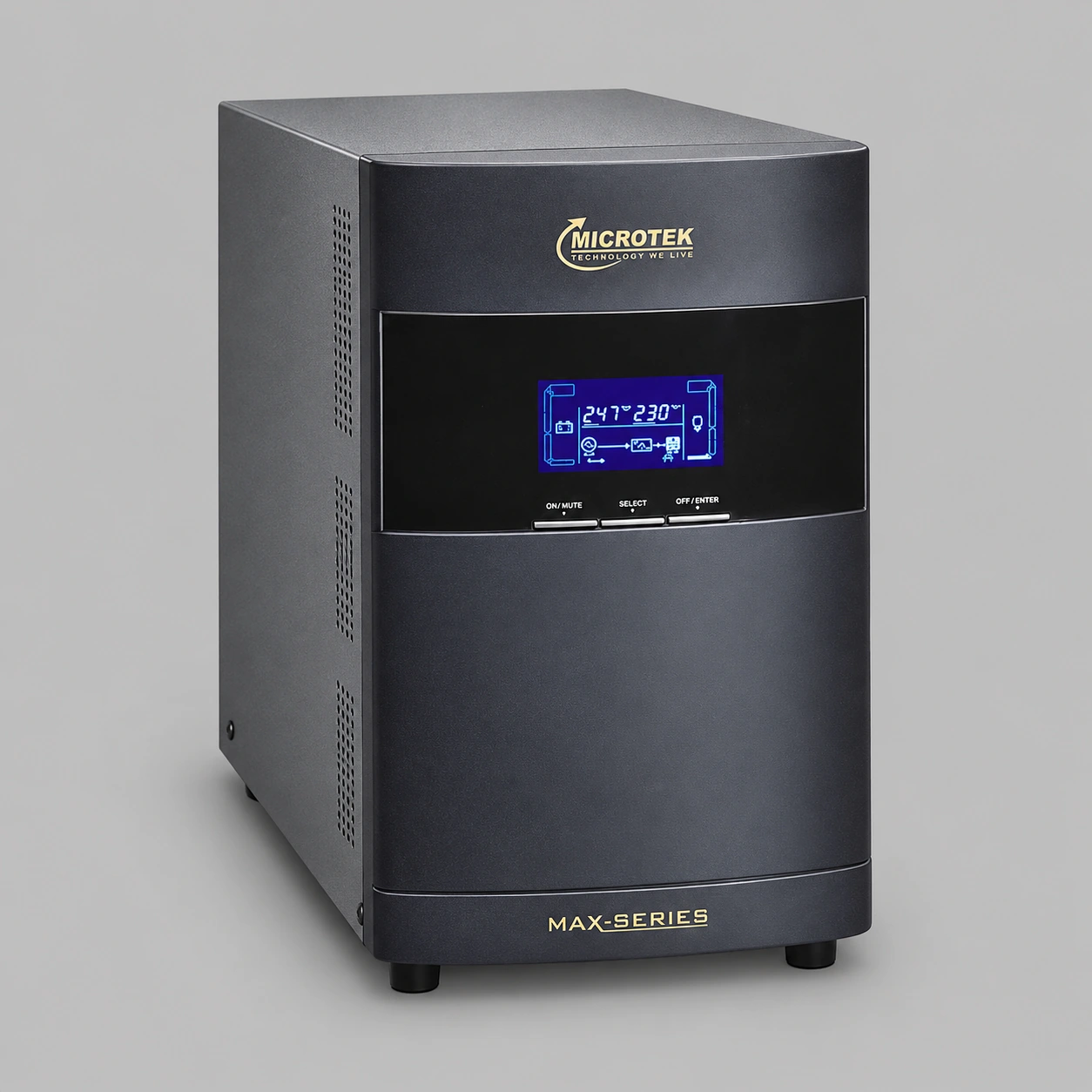

Microtek MAX+ 3KVA 72V Online UPS – 2700W with Inbuilt Batteries
Microtek MAX+ 3KVA 72V Online UPS – 2700W with Inbuilt Batteries
Microtek MAX+ 3KVA 72V Online UPS – 2700W with Inbuilt Batteries

Microtek MAX+ 3KVA 72V Online UPS – 2700W with Inbuilt Batteries

Original price was: ₹41,490.00.Current price is: ₹30,961.00.

  • -25%
Rated 0 out of 5
(0 customer reviews)

In stock

  • 3KVA / 2700W capacity with single-phase input and output.
  • Pure sine wave output using high-frequency double-conversion technology.
  • 72V battery system with 6 × 12V 7Ah inbuilt batteries.
  • Zero AC-to-battery transfer time.
  • Advanced battery management with automatic off-mode charging.
  • LCD display and RS232 monitoring; optional SNMP.
  • 2-year warranty.
Add to Wishlist
|
Add to Compare
Categories: , Brand:

Description

The Microtek MAX+ 3KVA 72V Online UPS delivers 2700W rated output for computer networks, servers, laboratories and other critical applications. Its IGBT-based double-conversion technology converts incoming AC power to DC and back to AC, providing stable pure sine wave output.

Six inbuilt 12V 7Ah batteries support backup operation with zero AC-to-battery transfer time. Advanced PFC, automatic off-mode charging, LCD monitoring and built-in electrical protections help manage everyday power requirements.

SpecificationDetails
BrandMicrotek
SeriesMAX+
ModelONLINE UPS MAX+ 3KVA 1PH:1PH 72V
UPS TypeOnline double-conversion
Rated Capacity3KVA / 2700W
Phase ConfigurationSingle-phase input, single-phase output
Output WaveformPure sine wave
Output Voltage Settings208 / 220 / 230 / 240 VAC
Battery System Voltage72V
Inbuilt Batteries6 × 12V 7Ah
DisplayLCD with LED indications
Weight14.45kg*
Dimensions (L × W × H)19 × 42.1 × 31.8*
Warranty2 years



ParameterDetails
TechnologyHigh-frequency double-conversion, IGBT-based
ControlMicrocontroller-based
Input Voltage Range—Load <50%110–300V (±5V)
Input Voltage Range—Load >50%160–300V (±5V)
Input Frequency40–70Hz
Input PhaseSingle phase with ground
Input Power Factor≥0.99 at full load
Synchronized Output Frequency47–53Hz or 57–63Hz
Battery Mode Output Frequency50Hz ±0.25Hz or 60Hz ±0.3Hz
THD—Linear Load≤2%
THD—Nonlinear Load≤4%
Crest Factor3:1 maximum
AC-to-Battery Transfer TimeZero
Inverter-to-Bypass Transfer Time<4ms
Efficiency85–92%
Battery Charging Current9.5A
Battery ManagementAdvanced battery management
Off-Mode ChargingAutomatic battery charging supported
CommunicationRS232 with monitoring software
SNMPOptional card support
Static BypassCan be enabled or disabled
OutletsProgrammable and non-programmable
Generator CompatibilitySupported with sine wave voltage supply
Isolation TransformerOptional
Noise FilteringEMI/RFI filter
Acoustic Noise<50dBA at 1 metre with fan speed control
ProtectionsOverload, short circuit, overtemperature and DC fan failure
Overvoltage ProtectionInbuilt overvoltage cut-off device
Short Circuit ResponseInverter shuts down within 5 cycles with alarm; no bypass transfer in AC mode



What is the rated power capacity? +

The UPS is rated at 3KVA / 2700W.

Are batteries included? +

Yes. The supplied configuration includes six 12V 7Ah inbuilt batteries, forming a 72V battery system.

Does it provide seamless switching to battery operation? +

The specified transfer time from AC mode to battery mode is zero.

Are SNMP and an isolation transformer standard features? +

Both SNMP and the isolation transformer are optional. RS232 communication with monitoring software is supported.
