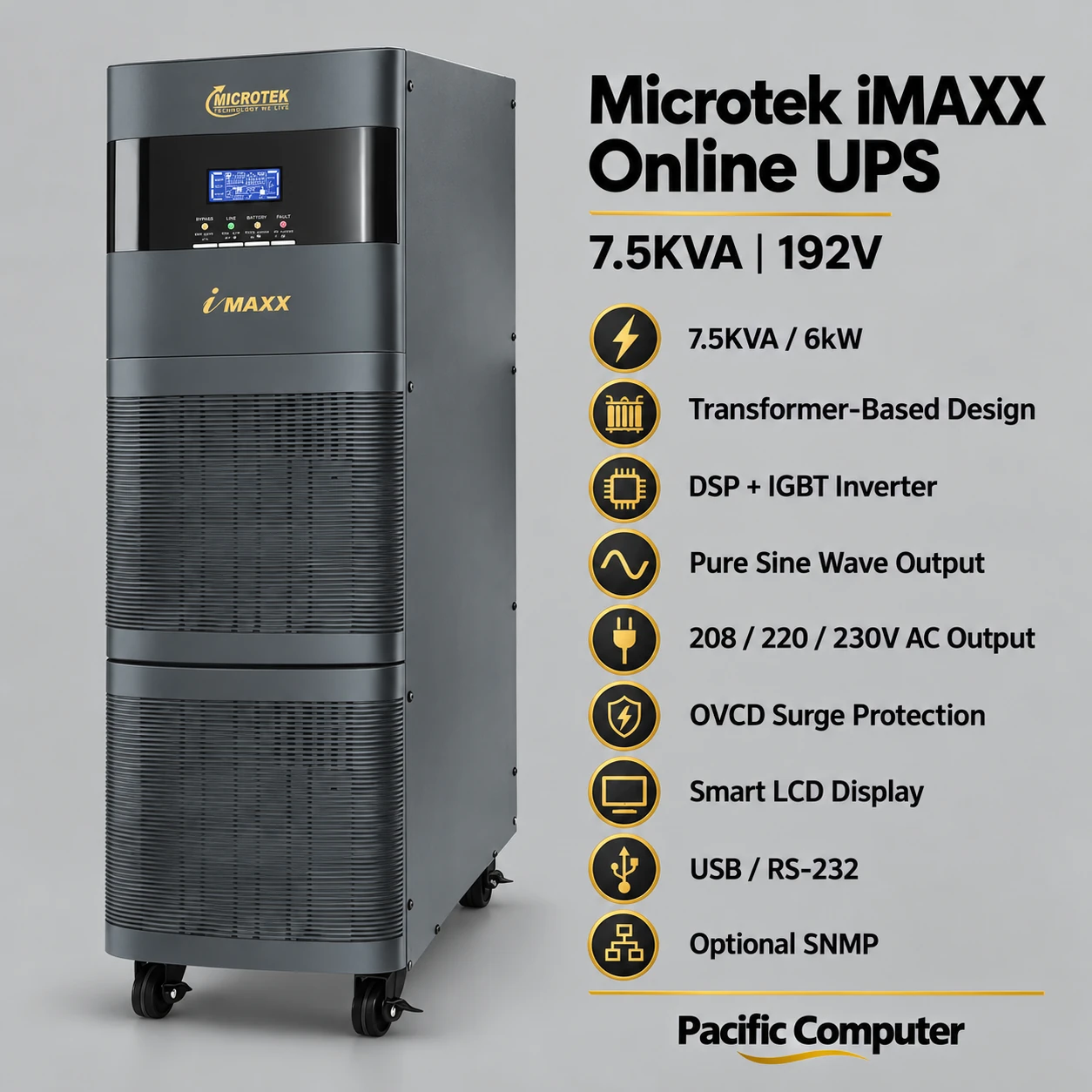

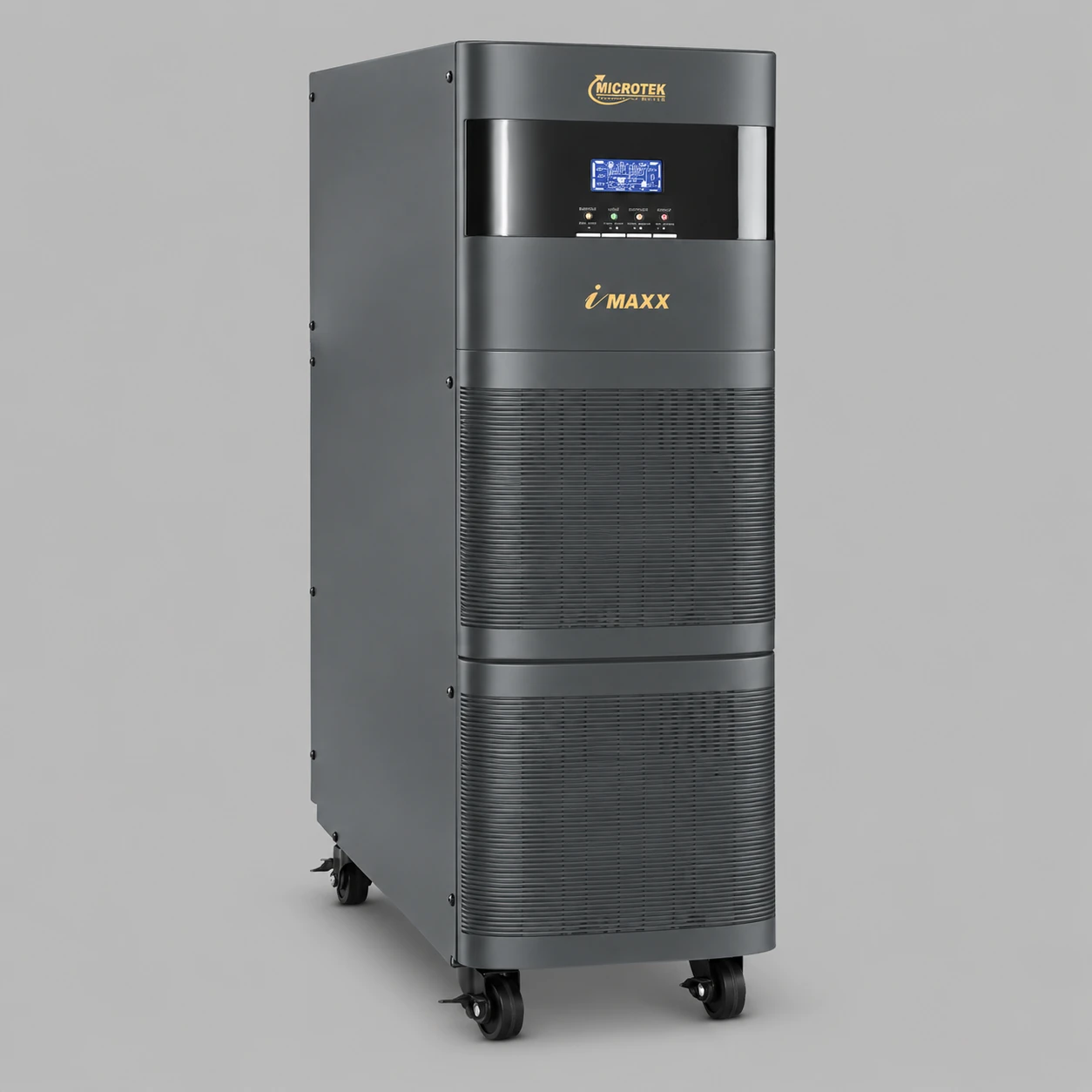

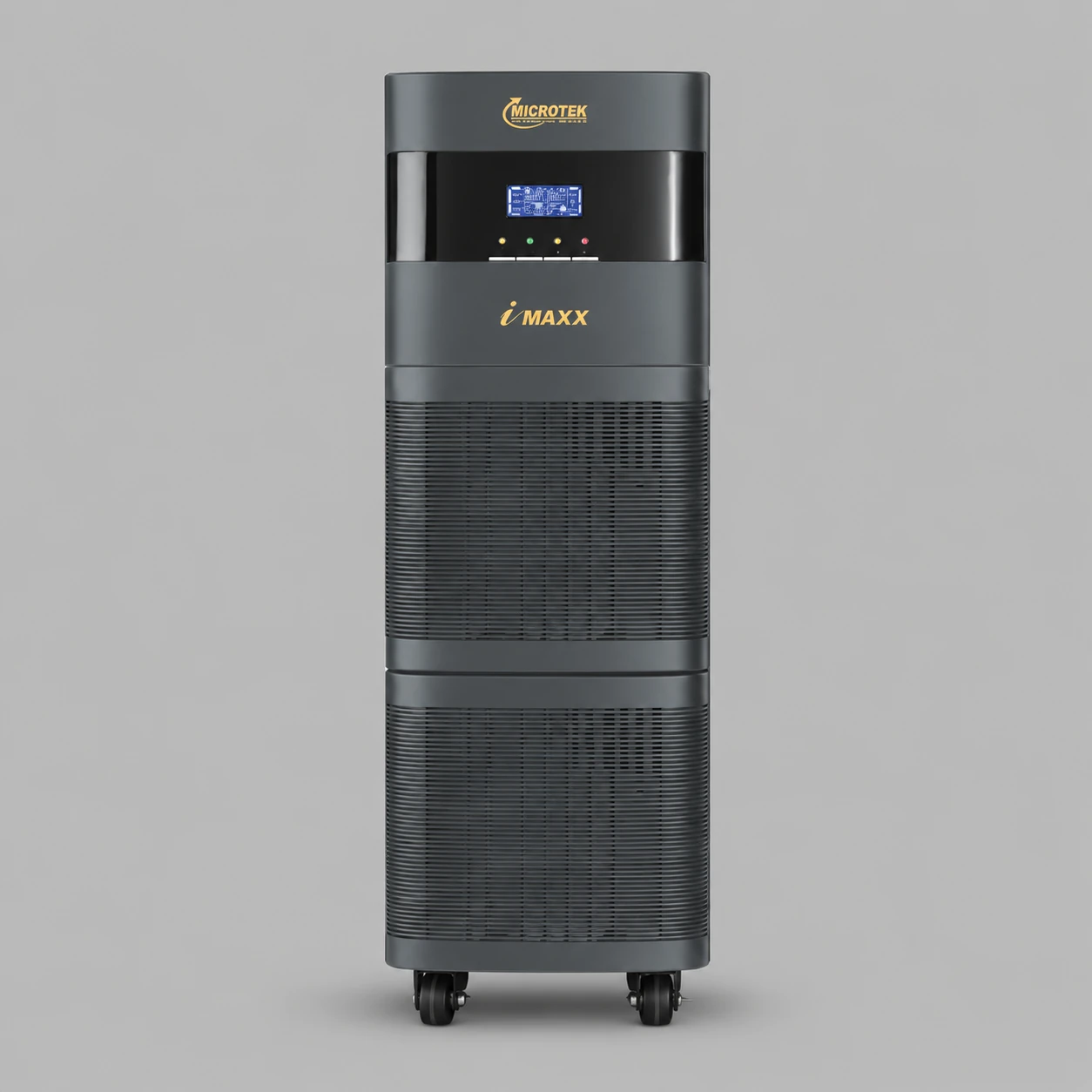

Microtek iMAXX Online UPS 7.5KVA 1PH:1PH 192V
Microtek iMAXX Online UPS 7.5KVA 1PH:1PH 192V
Microtek iMAXX Online UPS 7.5KVA 1PH:1PH 192V

Microtek iMAXX Online UPS 7.5KVA 1PH:1PH 192V

Original price was: ₹113,590.00.Current price is: ₹95,637.00.

  • -16%
Rated 0 out of 5
(0 customer reviews)

In stock

  • 7.5KVA / 6kW capacity with single-phase input and output.
  • Transformer-based online UPS with DSP-controlled IGBT inverter.
  • Pure sine wave output with configurable 208 / 220 / 230V AC settings.
  • Default 192V DC system, adjustable to 216V DC.
  • Inbuilt OVCD surge protection and EMI/RFI noise filter.
  • Smart LCD with RS-232 / USB communication and optional SNMP.
  • Cold start, maintenance bypass and generator compatibility.
Add to Wishlist
|
Add to Compare
Categories: , Brand:

Description

The Microtek iMAXX Online UPS 7.5KVA 1PH:1PH 192V is a transformer-based power backup solution for office and critical equipment within its 6kW rated capacity. Its DSP-controlled IGBT inverter delivers pure sine wave output, with configurable voltage settings and constant voltage, constant frequency operation without a battery.
The smart LCD displays load, battery level, operating mode and faults. OVCD surge protection, EMI/RFI filtering, over-temperature protection and conformal-coated PCB assemblies support operation in demanding environments.

SpecificationDetails
BrandMicrotek
SeriesiMAXX
Product TypeTransformer-based online UPS
Rated Capacity7.5KVA / 6kW
PhaseSingle-phase input / output with ground
Inverter TechnologyDSP control with IGBT-based inverter
Output Voltage Settings208 / 220 / 230V AC
Battery-Mode WaveformPure sine wave
Battery ArrangementExternal battery system
DisplaySmart LCD
CommunicationRS-232 / USB; optional SNMP
Net Weight78 kg
ParameterDetails
Nominal Input Voltage208 / 220 / 230V AC
Acceptable Input Voltage Range165–285V AC
Input Frequency Range40–55Hz for a 50Hz system
Battery-Mode Voltage Regulation+1%, as supplied
Synchronized Output Frequency Range45–55Hz
Output Frequency SettingFixed at 50Hz or synchronized with input
AC-to-DC Transfer TimeZero
Inverter-to-Bypass Transfer TimeZero
Bypass-to-Inverter Transfer TimeLess than 5ms
AC-Mode Efficiency87%
Battery-Mode Efficiency91%
DC Voltage SystemDefault 192V DC; adjustable to 216V DC
Battery Count16 / 18 batteries
Recommended Battery TypeVRLA / SMF
Tubular Battery CompatibilitySupported with charger cut-off voltage adjusted through the LCD
CVCF OperationConstant voltage and constant frequency operation without battery
Operating FeaturesHot standby and cold start
BypassBuilt-in maintenance bypass; additional bypass switch listed
Electrical ProtectionOVCD with surge protection; EMI/RFI noise filter
Temperature ProtectionOver-temperature indication and protection
PCB ProtectionConformal-coated PCB assemblies
LCD IndicationsLoad level, battery level, AC mode, battery mode, bypass mode and faults
Audible AlertsBattery mode, low battery, overload and faults
Optional FeaturesSNMP card and mute-mode alarm
Monitoring Software CompatibilityWindows 2000 / 2003 / XP / Vista / 2008 / 7 / 8, Linux and Mac
Generator CompatibilitySupported; supplied guidance specifies generator capacity at 2.5 times UPS capacity
1. What is the rated capacity of this UPS? +

The UPS is rated at 7.5KVA / 6kW and supports single-phase input and output.

2. Which batteries can be used? +

VRLA / SMF batteries are recommended. Tubular batteries are supported with the charger cut-off voltage adjusted through the LCD.

3. Does it support power monitoring? +

Yes. It includes RS-232 / USB communication, with an optional SNMP card for network monitoring.

4. How much backup time does it provide? +

Runtime depends on the connected load, battery capacity and configuration. A model-specific backup duration and battery inclusion details were not supplied.
