Name: Microtek iMAXX 10KVA Online UPS 192V | Pacific Computer
Price: 135429.00 INR
Availability: InStock

Description

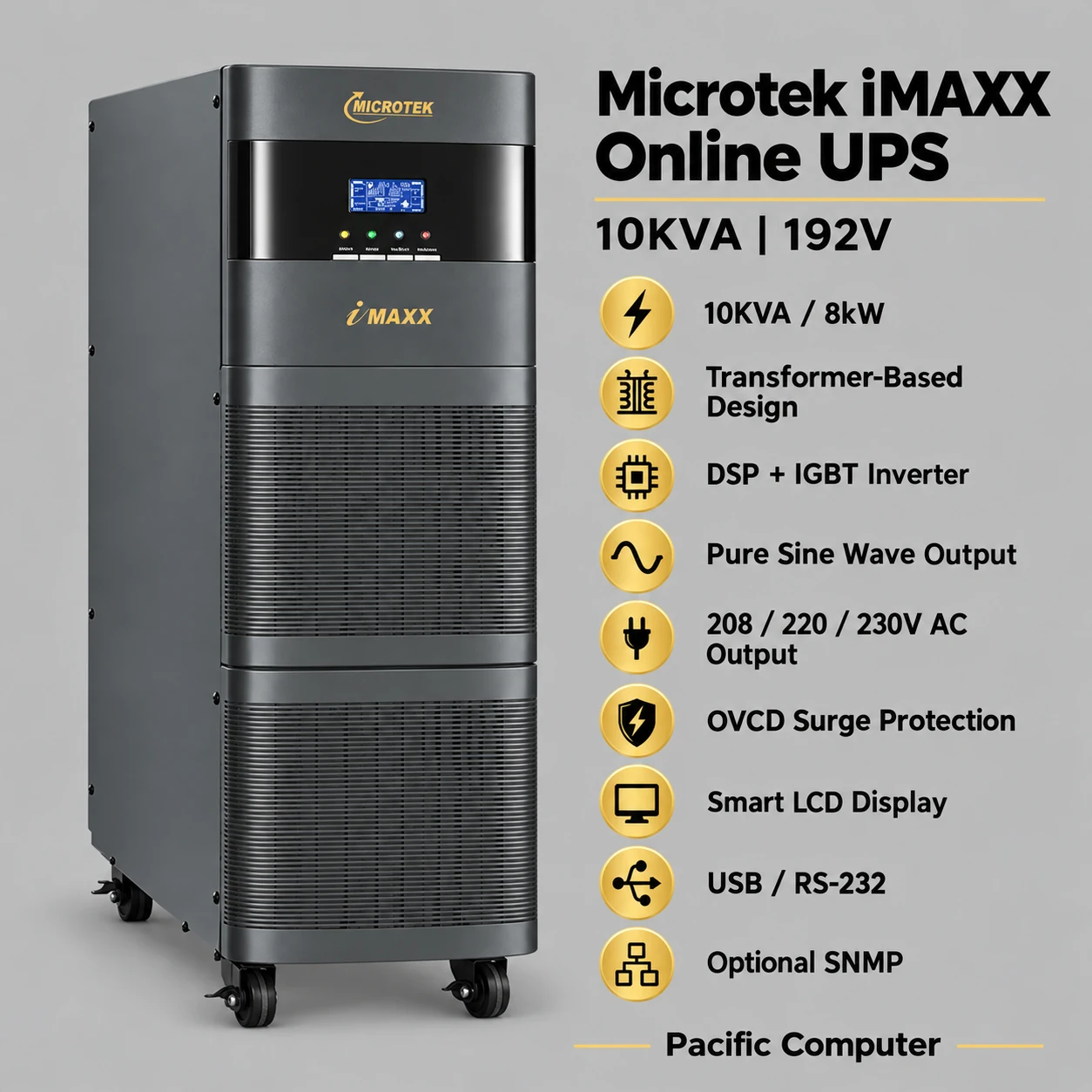

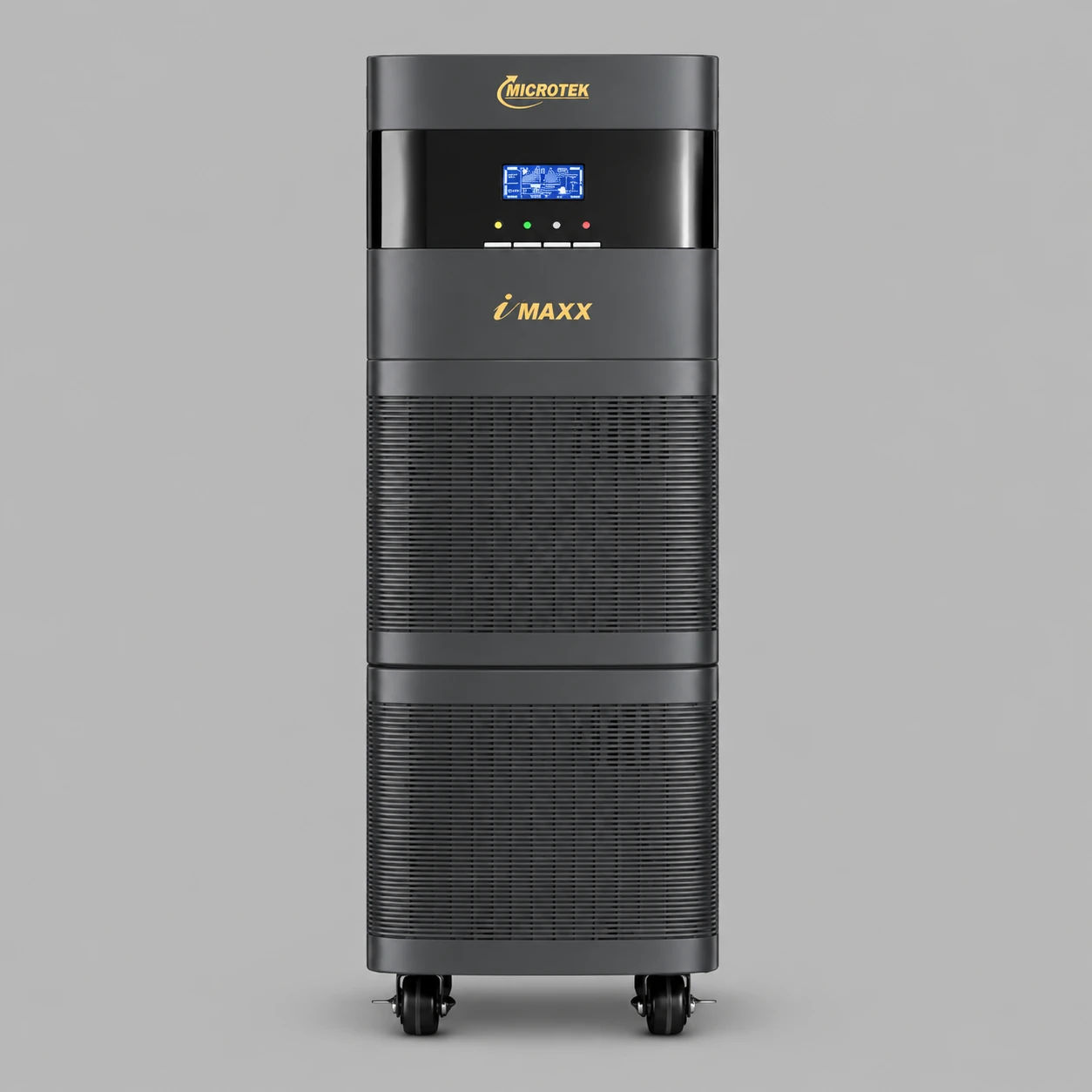

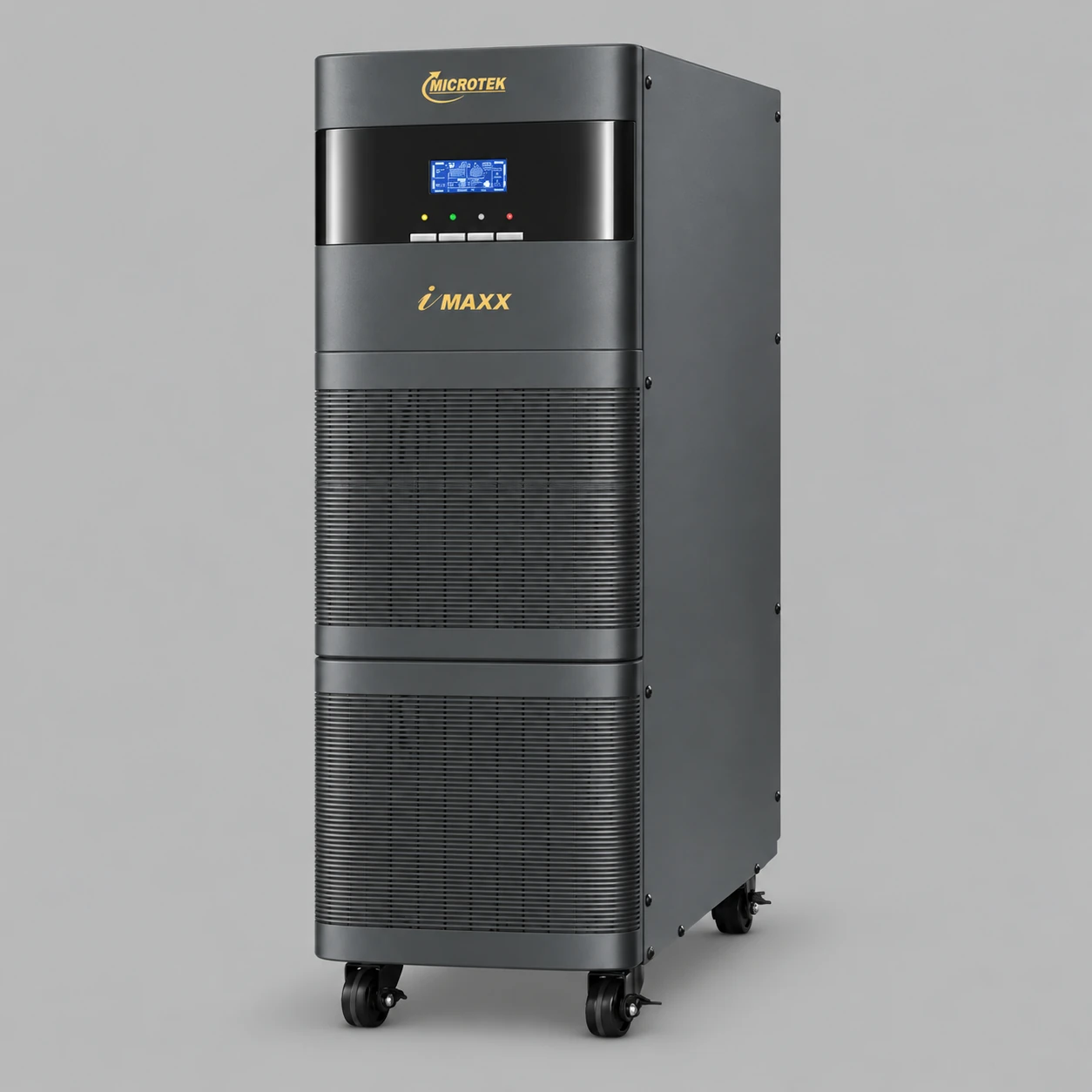

The Microtek iMAXX Online UPS 10KVA 192V is a low-frequency, transformer-based UPS designed for computer networks, servers, laboratories, ATMs and other critical equipment within its 8kW rated capacity. DSP technology with an IGBT-based inverter provides pure sine wave output, while configurable voltage settings support different installation requirements.
The UPS features OVCD surge protection, EMI/RFI filtering, over-temperature protection and conformal-coated PCB assemblies. Its smart LCD displays load, battery level, operating modes and faults. CVCF operation without a battery, cold start and maintenance bypass provide additional operating flexibility.

Specification	Details
Brand	Microtek
Series	iMAXX
Model	i-MAXX 10KVA/192V
Category	Online UPS
Design	Low-frequency, transformer-based
Rated Capacity	10KVA / 8kW
Phase	Single-phase input / output with ground
Inverter Technology	DSP-controlled, IGBT-based
Output Voltage Settings	208 / 220 / 230V AC
Battery-Mode Waveform	Pure sine wave
Battery Arrangement	External battery system
Display	Smart LCD
Net Weight	86 kg

Parameter	Details
Nominal Input Voltage	208 / 220 / 230V AC
Acceptable Input Voltage Range	165–285V AC
Input Frequency Range	40–55Hz for a 50Hz system
Battery-Mode Voltage Regulation	+1%, as supplied
Synchronized Output Frequency Range	45–55Hz
Output Frequency Setting	Fixed at 50Hz or synchronized with input
AC-to-DC Transfer Time	Zero
Inverter-to-Bypass Transfer Time	Zero
Bypass-to-Inverter Transfer Time	Less than 5ms
AC-Mode Efficiency	87%
Battery-Mode Efficiency	91%
DC Voltage System	Default 192V DC; adjustable to 216V DC
Battery Count	16 / 18 batteries
Recommended Battery Type	VRLA / SMF
Tubular Battery Support	Supported with charger cut-off voltage adjusted through the LCD
CVCF Operation	Constant voltage and constant frequency operation without battery
Operating Features	Hot standby and cold start
Bypass	Built-in maintenance bypass; additional bypass switch listed
Surge Protection	Inbuilt OVCD
Noise Filtering	EMI/RFI filter
Temperature Protection	Over-temperature indication and protection
PCB Protection	Conformal-coated PCB assemblies
LCD Indications	Load level, battery level, AC mode, battery mode, bypass mode and faults
Audible Alerts	Battery mode, low battery, overload and faults
Communication	RS-232 / USB
Optional Monitoring	SNMP card
Optional Alarm Feature	Mute-mode alarm
Monitoring Software Compatibility	Windows 2000 / 2003 / XP / Vista / 2008 / 7 / 8, Linux and Mac
Generator Compatibility	Supported; supplied guidance specifies generator capacity at 2.5 times UPS capacity

1. What is the rated output capacity? +

The UPS is rated at 10KVA / 8kW with single-phase input and output.

2. Which battery types are supported? +

VRLA / SMF batteries are recommended. Tubular batteries are supported with the charger cut-off voltage adjusted through the LCD.

3. Does it support remote monitoring? +

It supports RS-232 / USB communication. An optional SNMP card provides network monitoring capability.

4. What backup time does it provide? +

Backup time depends on the connected load, battery capacity and configuration. A model-specific runtime and battery inclusion details were not supplied.
