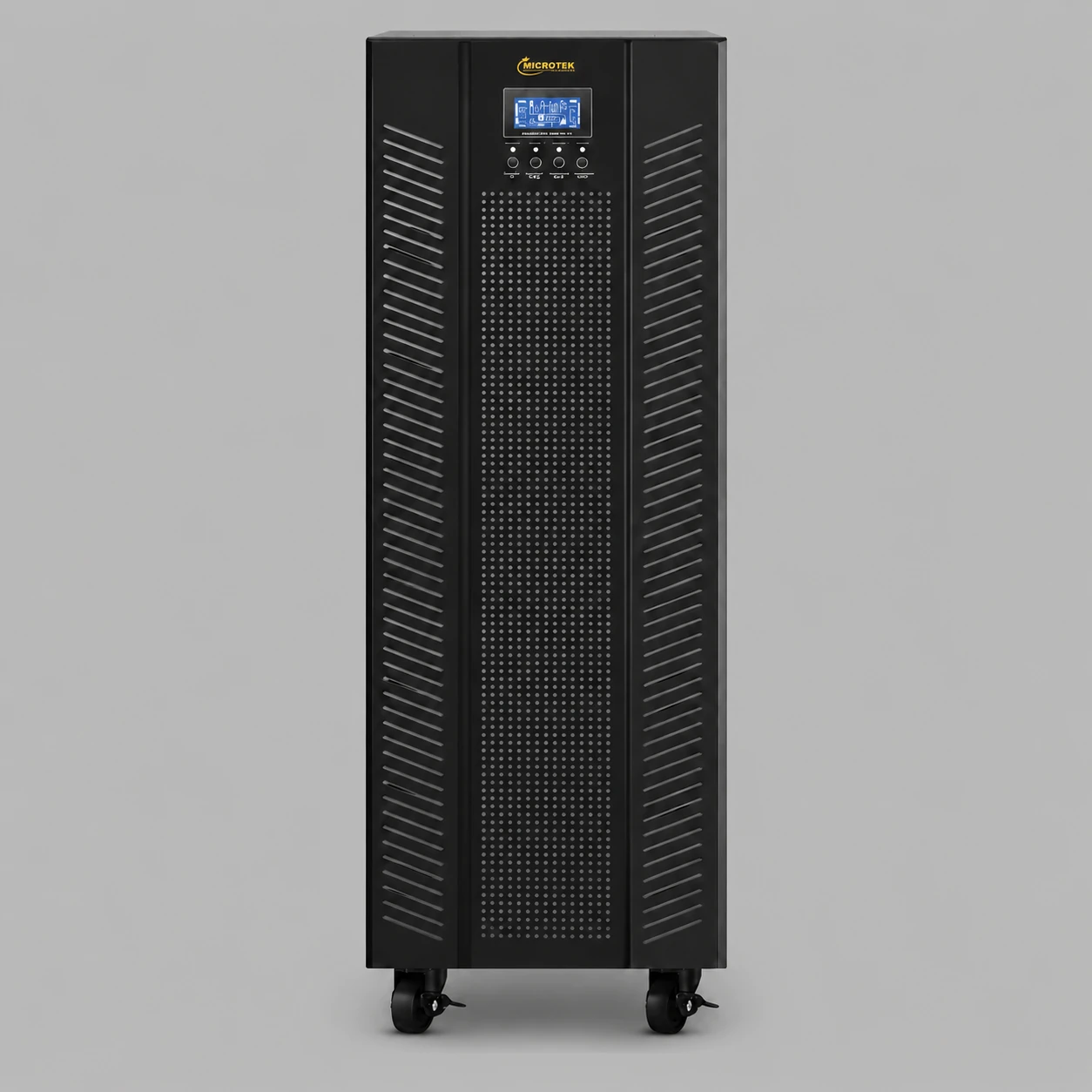

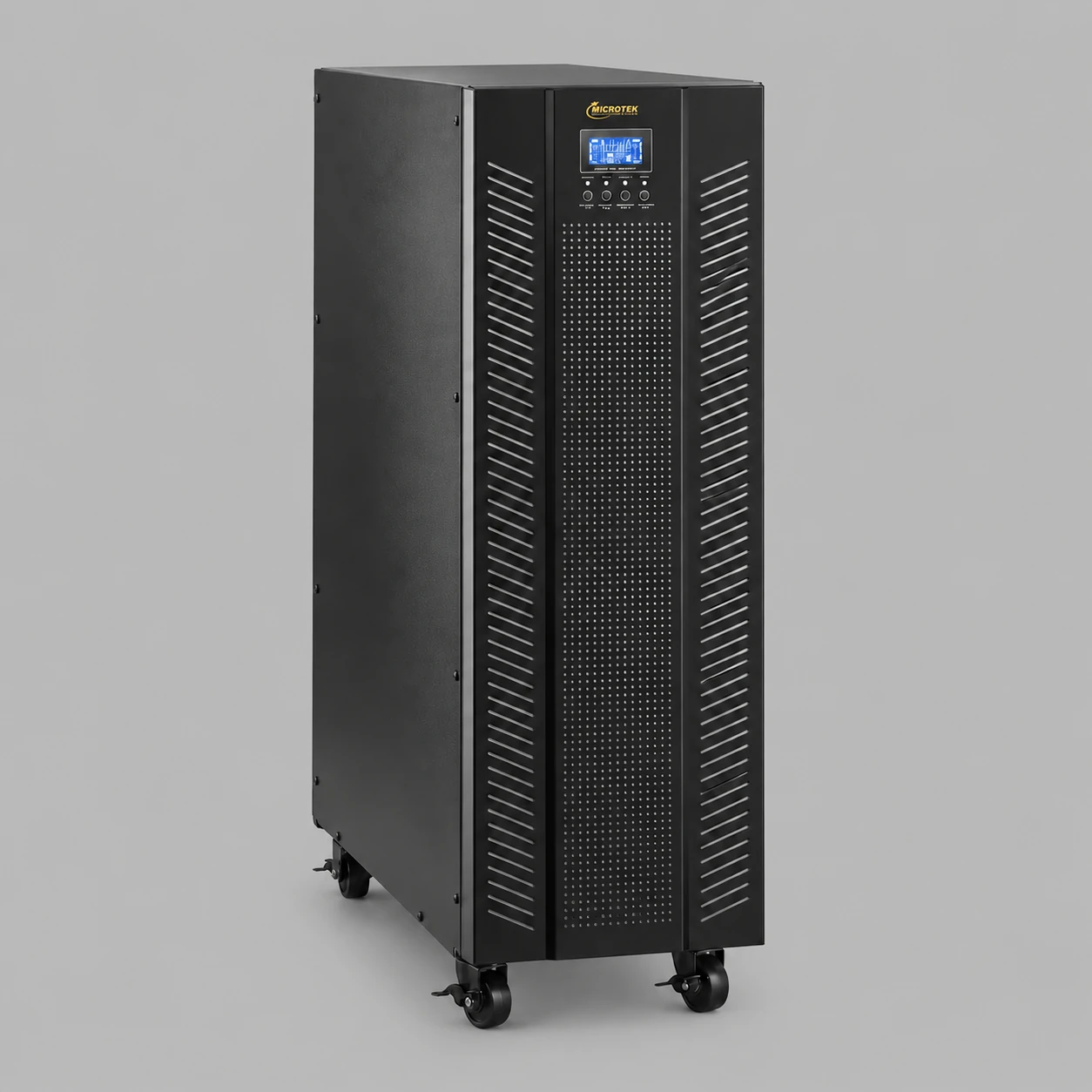

Microtek Online UPS 6KVA 1PH:1PH 192V MAX+
Microtek Online UPS 6KVA 1PH:1PH 192V MAX+
Microtek Online UPS 6KVA 1PH:1PH 192V MAX+

Microtek Online UPS 6KVA 1PH:1PH 192V MAX+

Original price was: ₹86,490.00.Current price is: ₹60,710.00.

  • -30%
Rated 0 out of 5
(0 customer reviews)

In stock

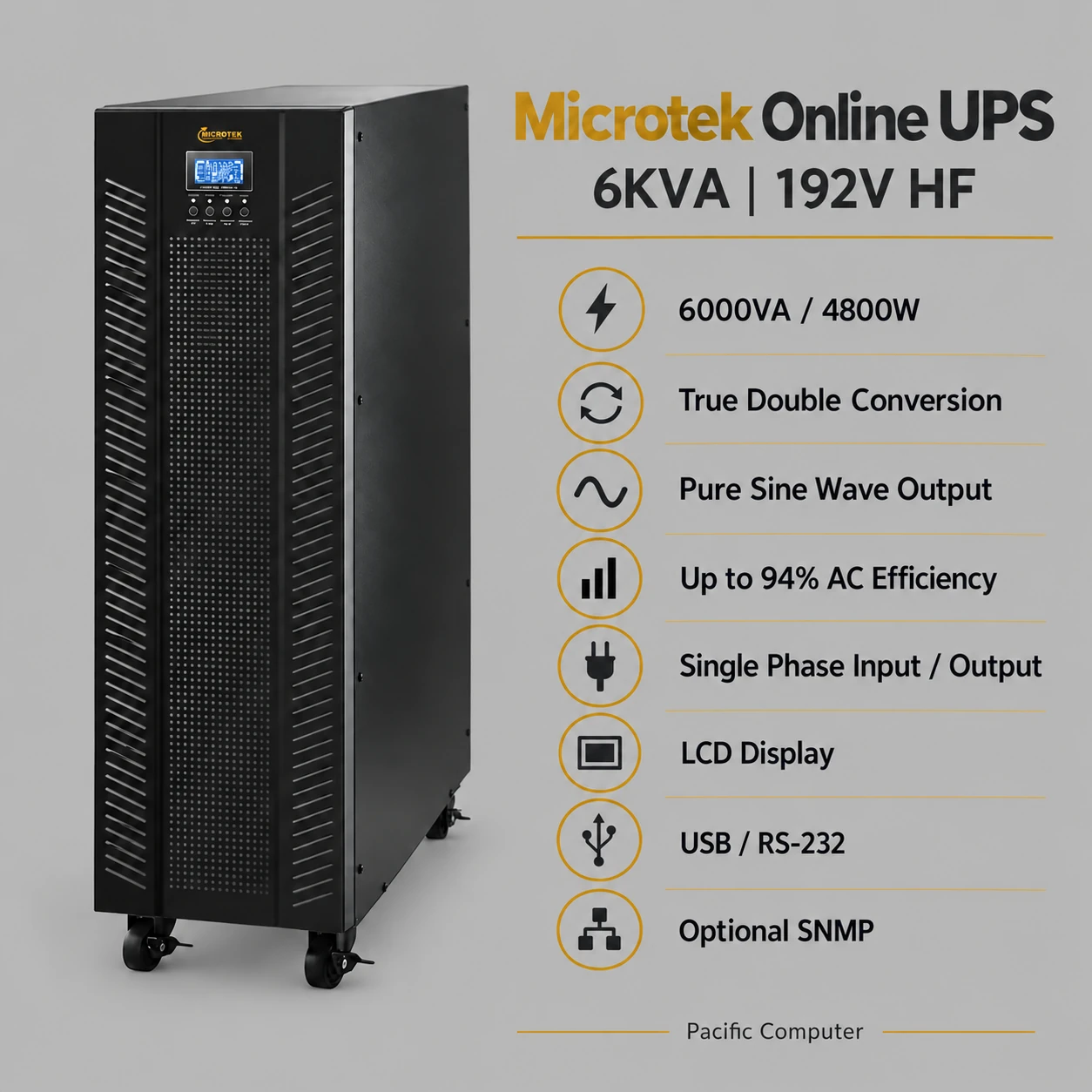

  • 6KVA / 4800W capacity with single-phase input and output.
  • True double-conversion technology with pure sine wave output.
  • Up to 94% efficiency in AC mode.
  • Default 192V DC configuration, adjustable to 216V or 240V DC.
  • Zero transfer time from AC to battery mode.
  • LCD display with USB / RS-232 monitoring and optional SNMP.
  • Generator compatible with ECO mode and Emergency Power Off.
Add to Wishlist
|
Add to Compare
Categories: , Brand:

Description

The Microtek Online UPS 6KVA 1PH:1PH 192V (HF) provides power backup and voltage conditioning for high-capacity equipment. Its true double-conversion design, DSP control and pure sine wave output support stable power delivery, while advanced battery management supports battery charging and maintenance.
An LCD display shows operating status, load and battery information. Adjustable battery configurations, generator compatibility and communication options provide flexibility for power monitoring.

SpecificationDetails
BrandMicrotek
ModelOnline UPS 6KVA 1PH:1PH 192V (HF)
CategoryOnline UPS
Rated Capacity6000VA / 4800W
PhaseSingle-phase input / Single-phase output
TechnologyHigh-frequency true double-conversion with DSP control
Output WaveformPure sine wave
Battery TypeVRLA / SMF
DisplayLCD
CommunicationRS-232 or USB; optional SNMP
Generator CompatibilitySupported
ParameterDetails
Nominal Input Voltage208 / 220 / 230 / 240V AC
Input Voltage Range110–300V AC at 50% load; 176–300V AC at 100% load
Input Frequency Range46–54Hz
Input Power Factor>0.99 at 100% load
Output Power FactorDefault 0.8; optional 0.9; unity with 20-battery option
DC VoltageDefault 192V DC; adjustable to 216V / 240V DC
Battery ConfigurationDefault 16 batteries; adjustable to 18 or 20
Maximum Charging Current4A
AC-to-Battery Transfer TimeZero
Inverter-to-Bypass Transfer TimeZero
EfficiencyAC mode: up to 94%; battery mode: 91%
Output Harmonic Distortion<1% with linear load; <4% with non-linear load
Current Crest Ratio3:1 maximum
Noise LevelLess than 55dB at 1 metre
Operating Modes50Hz / 60Hz frequency converter mode; ECO mode
BypassMaintenance bypass and static bypass available
Protection FeaturesEmergency Power Off; inbuilt surge protection with OVCD available
Parallel RedundancyOptional N+X
LCD InformationUPS status, load, battery level, input/output voltage and frequency, discharge timer and fault status
1. What is the capacity of this UPS? +

The rated capacity is 6000VA / 4800W with a default output power factor of 0.8.

2. Can the battery configuration be adjusted? +

Yes. The default configuration uses 16 batteries at 192V DC. It supports adjustment to 18 batteries at 216V DC or 20 batteries at 240V DC.

3. Does it support remote monitoring? +

It supports RS-232 or USB communication. Optional SNMP enables monitoring through an SNMP manager and web browser.

4. How much backup time does it provide? +

Backup time depends on the connected load and battery capacity. A confirmed runtime was not supplied.
