Microtek UPS LEGEND 1600 1600VA/960W Line Interactive UPS

Description

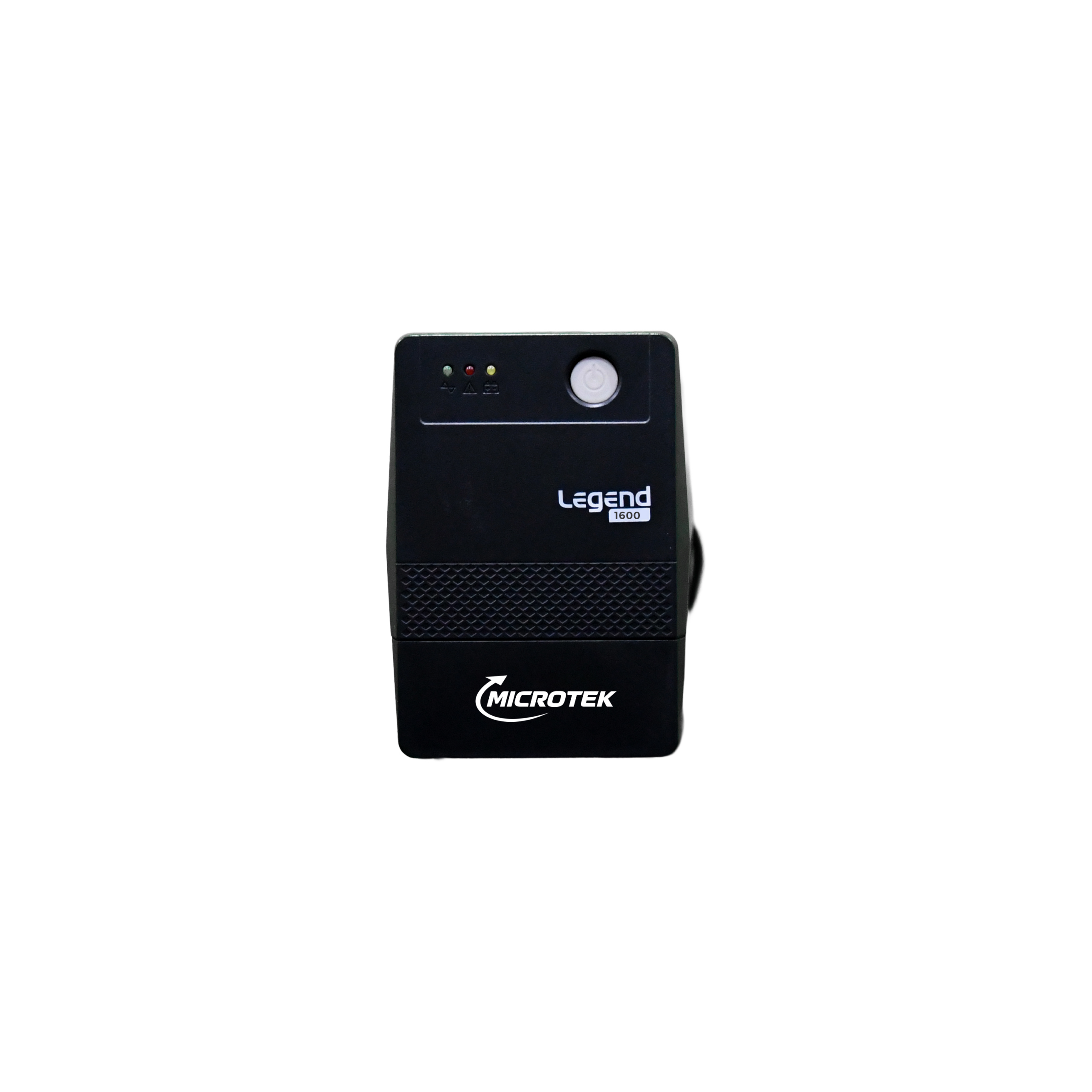

Microtek UPS LEGEND 1600

The Microtek UPS LEGEND 1600 is a microprocessor-based Line Interactive UPS designed to deliver optimum reliability and dependable protection for computers and other compatible electronic and IT equipment.

It incorporates Boost and Buck AVR technology to help stabilize the output voltage during fluctuations in the incoming AC supply. This helps provide a more consistent power supply to connected equipment.

With a wide 140V–300VAC input voltage range, the UPS is designed to operate effectively in areas where voltage fluctuations are common. It also provides protection against overload, battery discharge, and overcharge.

The UPS LEGEND 1600 is equipped with a 12V/9Ah × 2 Sealed Maintenance-Free battery system, providing reliable backup power for connected equipment during power interruptions.

Key Benefits

Microprocessor-based Line Interactive UPS
1600VA / 960W capacity
Boost & Buck AVR for voltage stabilization
Wide 140V–300VAC input voltage range
Overload protection
Battery discharge and overcharge protection
Auto Restart when AC power recovers
Generator Compatibility option
Longer battery life
Easy Off-Mode Charging
Cold Start Function
Sealed Maintenance-Free batteries
Suitable for computers and compatible IT loads

Ideal Applications

The UPS LEGEND 1600 can be used for compatible:

Desktop computers
Workstations
Office computers
Networking equipment
Wi-Fi routers and modems
CCTV and security equipment
IT equipment
Other compatible electronic devices within the 960W rated capacity

Salient Features

Microprocessor-Based UPS: Provides intelligent and reliable UPS operation.
Line Interactive Technology: Provides backup and helps regulate power during voltage fluctuations.
Boost & Buck AVR: Helps stabilize voltage and protect connected equipment from voltage variations.
Wide Input Voltage Range: Supports an input range of 140V–300VAC.
Overload Protection: Helps protect the UPS and connected equipment from excessive load.
Discharge & Overcharge Protection: Helps protect the batteries and support longer battery life.
Auto Restart: Automatically restarts when AC power is restored.
Generator Compatibility: Includes a generator compatibility option for suitable power sources.
Longer Battery Life: Battery protection and charging features help improve battery longevity.
Easy Off-Mode Charging: Supports battery charging while the UPS is switched off.
Cold Start Function: Allows the UPS to start from battery power when mains electricity is unavailable.
High Capacity: Provides 1600VA / 960W capacity for compatible computer and IT loads.

Specification	Details
Model	UPS LEGEND 1600
Capacity	1600VA / 960W
UPS Type	Line Interactive
Technology	Microprocessor Based
Input Voltage Range	140V – 300VAC
Input Frequency	50Hz ± 10%
Output Voltage	230VAC Nominal
Transfer Time	Typical 4–8 ms
Battery Mode Waveform	Modified Sine Wave
Battery Type	Sealed Maintenance Free (SMF)
Battery Rating	12V / 9Ah × 2
Charging Time	6–8 Hours to recover to 90% capacity
Operating Temperature	0°C – 40°C
Relative Humidity	0–95% Non-Condensing
Noise Level	< 45 dB
