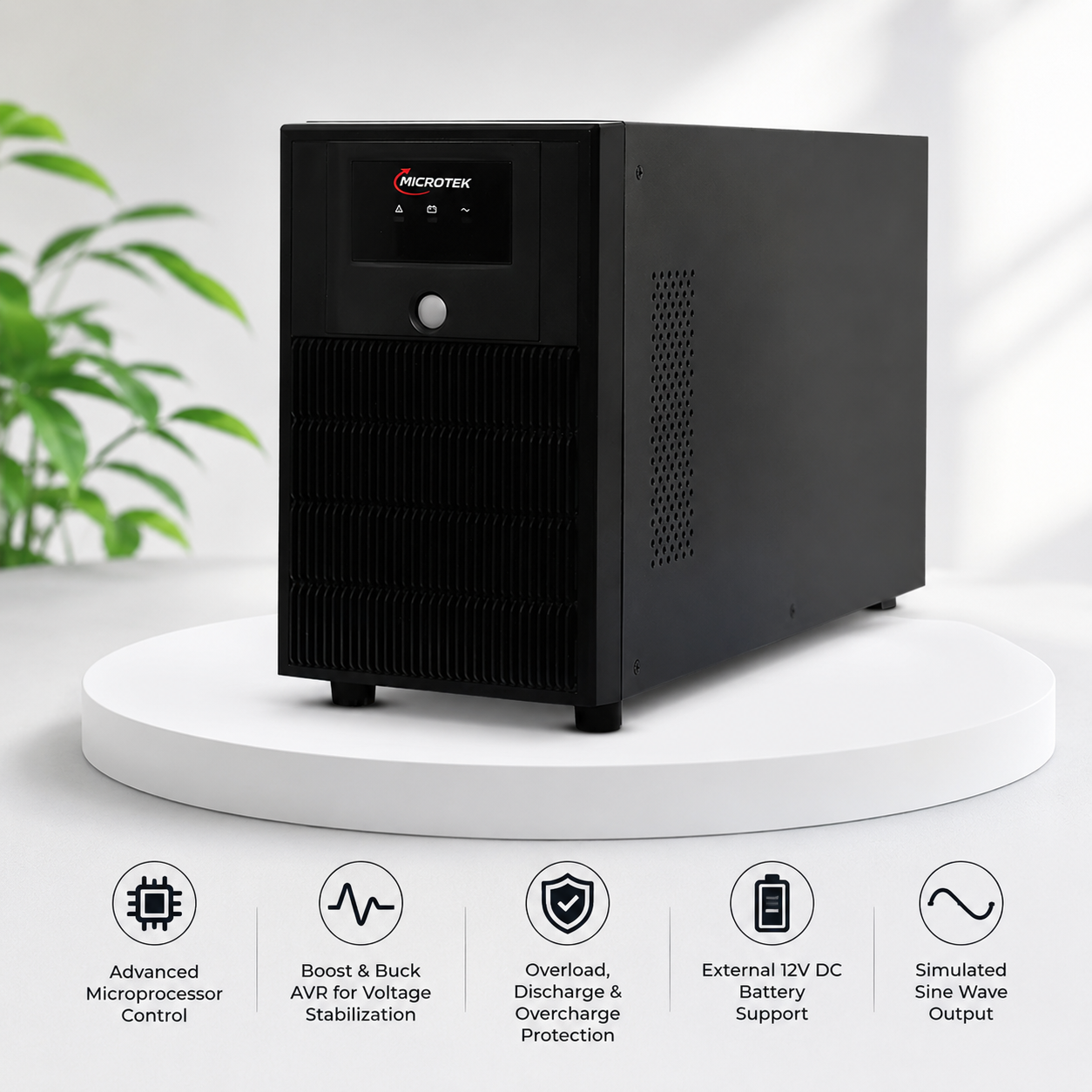

Microtek UPS DESIRE PRO+ 1000 1000VA/600W Line Interactive UPS

Description

The Microtek UPS DESIRE PRO+ 1000 is a high-reliability Line Interactive UPS with a capacity of 1000VA/600W, designed to protect computers and other sensitive IT equipment from common power-related problems.

Its advanced microprocessor control ensures reliable operation, while the integrated Boost and Buck AVR helps stabilize fluctuating input voltage without unnecessarily switching to battery mode.

The UPS also provides selectable charging current, allowing greater flexibility for external battery charging. Features such as Auto Restart, Cold Start, Off-Mode Charging, and Simulated Sine Wave output make it a practical power backup solution for computers, networking equipment, surveillance systems, and other compatible IT loads.

Key Highlights

1000VA / 600W capacity
Excellent microprocessor-based control
Boost & Buck AVR for voltage stabilization
Selectable battery charging current
Auto Restart when AC power recovers
Simulated Sine Wave output in battery mode
Off-Mode Charging
Cold Start Function
External 12V DC battery support
Overload, discharge and overcharge protection
Typical transfer time of 4–8 ms
Compact and robust design

⚡ Advanced Microprocessor Control

The microprocessor-based design provides intelligent control and reliable UPS operation.

🔌 Boost & Buck AVR

Automatically regulates fluctuations in input voltage to provide more stable power to connected equipment.

🔋 Selectable Charging Current

The charging current can be adjusted between 2.5A, 6A and 10A, providing flexibility for different battery requirements.

🔄 Auto Restart

The UPS can automatically restart when the AC power supply is restored.

🌊 Simulated Sine Wave

Provides a simulated sine-wave output when operating on battery power and is suitable for compatible computers and IT equipment.

❄️ Cold Start Function

Allows the UPS to start using battery power even when mains AC power is unavailable.

🔋 External Battery

The UPS operates with a 12V DC external battery, making it suitable for applications requiring configurable backup capacity.

🛡️ Comprehensive Protection

Designed with protection against overload, battery discharge and overcharge.

Specification	Details
Model	UPS DESIRE PRO+ 1000
UPS Type	Line Interactive
Capacity	1000VA / 600W
Microprocessor Control	Yes
Input Voltage Range	140V – 300V AC
Input Frequency	50Hz
Output Voltage	220/230V AC ±10%
Transfer Time	Typical 4–8 ms
Battery Mode Waveform	Simulated Sine Wave
Battery Voltage	12V DC
Floating Charge Voltage	13.7V DC ±2%
Maximum Charging Current	2.5A / 6A / 10A Adjustable
AC Mode Indicator	Green
Battery Mode Indicator	Yellow
Fault Indicator	Red
Low Battery Alarm	Sounds every second
Overload Alarm	Sounds every 0.5 second
Battery Replacement Alarm	Sounds every 2 seconds
Fault Alarm	Continuous
Operating Temperature	0°C – 40°C
Relative Humidity	0–90% Non-Condensing
Noise Level	<40 dB
Protection	Overload, Discharge & Overcharge
Battery Type	External Battery
Dimensions (L × W × H)	395 × 145 × 220 mm
Weight	10.8 kg

1. What is the capacity of the Microtek UPS DESIRE PRO+ 1000? +

The UPS has a capacity of 1000VA / 600W.

2. What type of UPS is the DESIRE PRO+ 1000? +

It is a Line Interactive UPS with Boost and Buck AVR technology.

3. What is the input voltage range? +

The input voltage range is 140V to 300V AC.

4. What is the output voltage? +

The output voltage is 220/230V AC ±10%.
