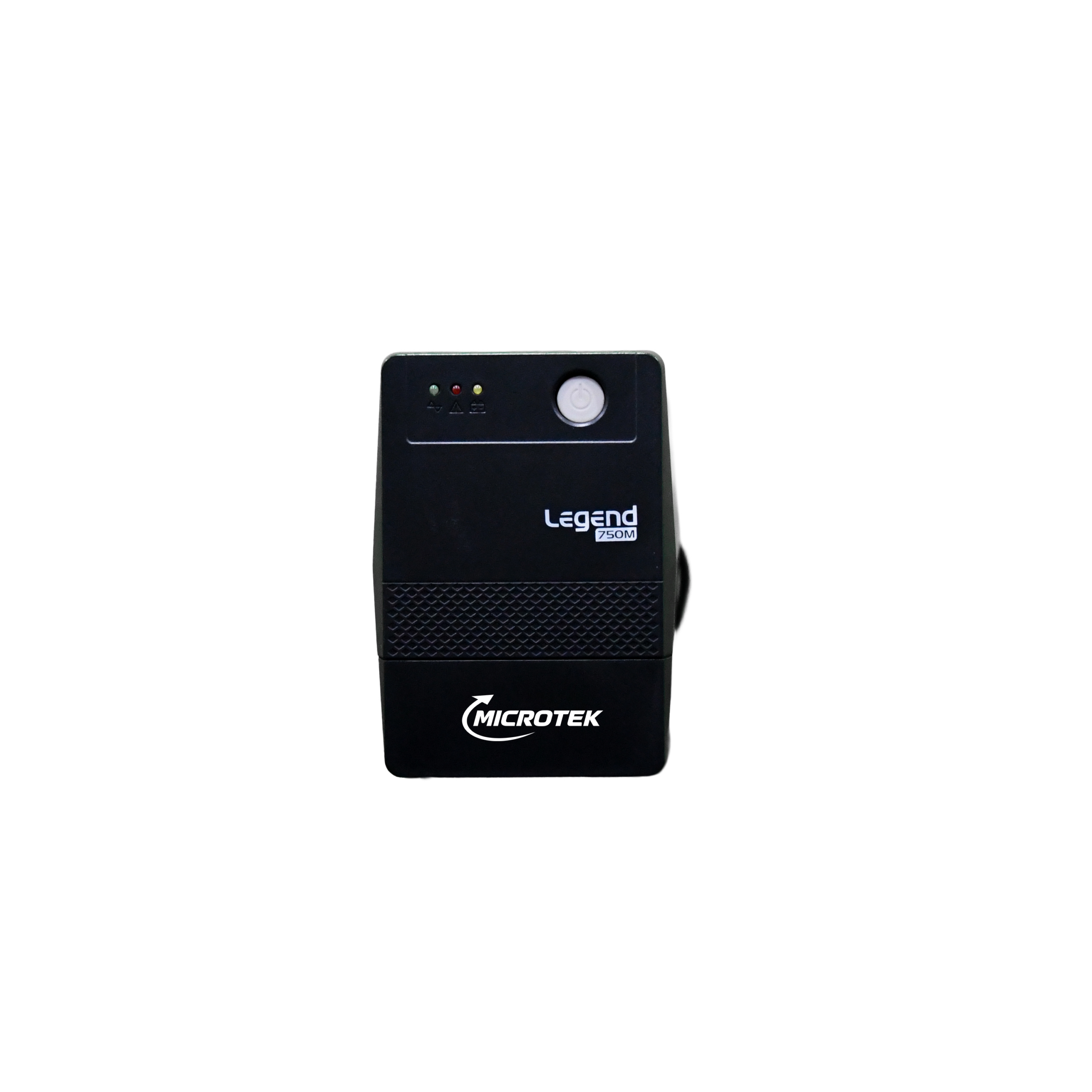

Microtek UPS Legend 750M – 650VA/360W Line Interactive UPS

Description

Microtek UPS Legend 750M – Long Backup UPS for Micro Loads

The Microtek UPS Legend 750M is a specially designed Line Interactive UPS featuring a Microprocessor-based Load Sensing System that detects low power consumption devices and optimizes backup accordingly.

It is particularly suitable for CCTV surveillance systems, DVRs, Wi-Fi modems, broadcast studio equipment and other micro-load applications where extended backup is important.

Under standard test conditions, the UPS can provide more than 3 hours of backup for micro power consumption devices. It can also be used with computers and other IT loads when normal UPS backup is required.

The Legend 750M is designed for Indian power conditions and operates across a wide 142V to 282V AC input range. It also features Auto Restart during AC recovery, along with Generator/Inverter compatibility, making it a versatile choice for home, office, security and IT applications.

Key Features

Microprocessor-based Load Sensing System for detecting micro power consumption devices.
More than 3 hours backup for suitable micro-load applications under specified test conditions.
Suitable for CCTV, DVR, Wi-Fi modems, broadcast studio equipment and similar devices.
Can also support computers and other IT loads with normal backup.
650VA / 360W capacity.
Wide 142V–282V AC input voltage range.
Auto Restart when AC power is recovering.
Generator/Inverter compatible.
Heavy-duty design specially suited to Indian power conditions.
Modified Sine Wave output in battery mode.
Sealed Maintenance Free (SMF) battery.
Compact design suitable for home, office and surveillance applications.

Specification	Details
Model	Microtek UPS Legend 750M
Capacity	650VA / 360W
UPS Type	Line Interactive
Input Voltage Range	142V – 282V AC
Input Frequency	50 Hz ± 10%
Output Voltage	230V AC Nominal
Transfer Time	Typical 4–8 ms
Battery Mode Waveform	Modified Sine Wave
Battery Type	Sealed Maintenance Free
Battery Rating	SMF 12V / 7Ah × 1
Charging Time	6 hours to recover up to 90% capacity
Operating Temperature	0°C – 40°C
Relative Humidity	0–95% Non-Condensing
Noise Level	< 40 dB
Weight	4.86 kg
Dimensions (L × W × H)	28.1 × 10 × 14.3 cm

Q1. What is the capacity of Microtek UPS Legend 750M? +

The Microtek UPS Legend 750M has a capacity of 650VA / 360W.

Q2. How much backup does the Legend 750M provide? +

It can provide more than 3 hours of backup for suitable micro power consumption devices under specified standard test conditions. Actual backup depends on the connected load and battery condition.

Q3. Is the Legend 750M suitable for CCTV cameras? +

Yes. It is specifically designed for micro-load applications such as CCTV surveillance systems and DVRs.

Q4. Can I use the Legend 750M with a Wi-Fi router or modem? +

Yes. The UPS is suitable for Wi-Fi modems, routers and other low-power networking equipment.
