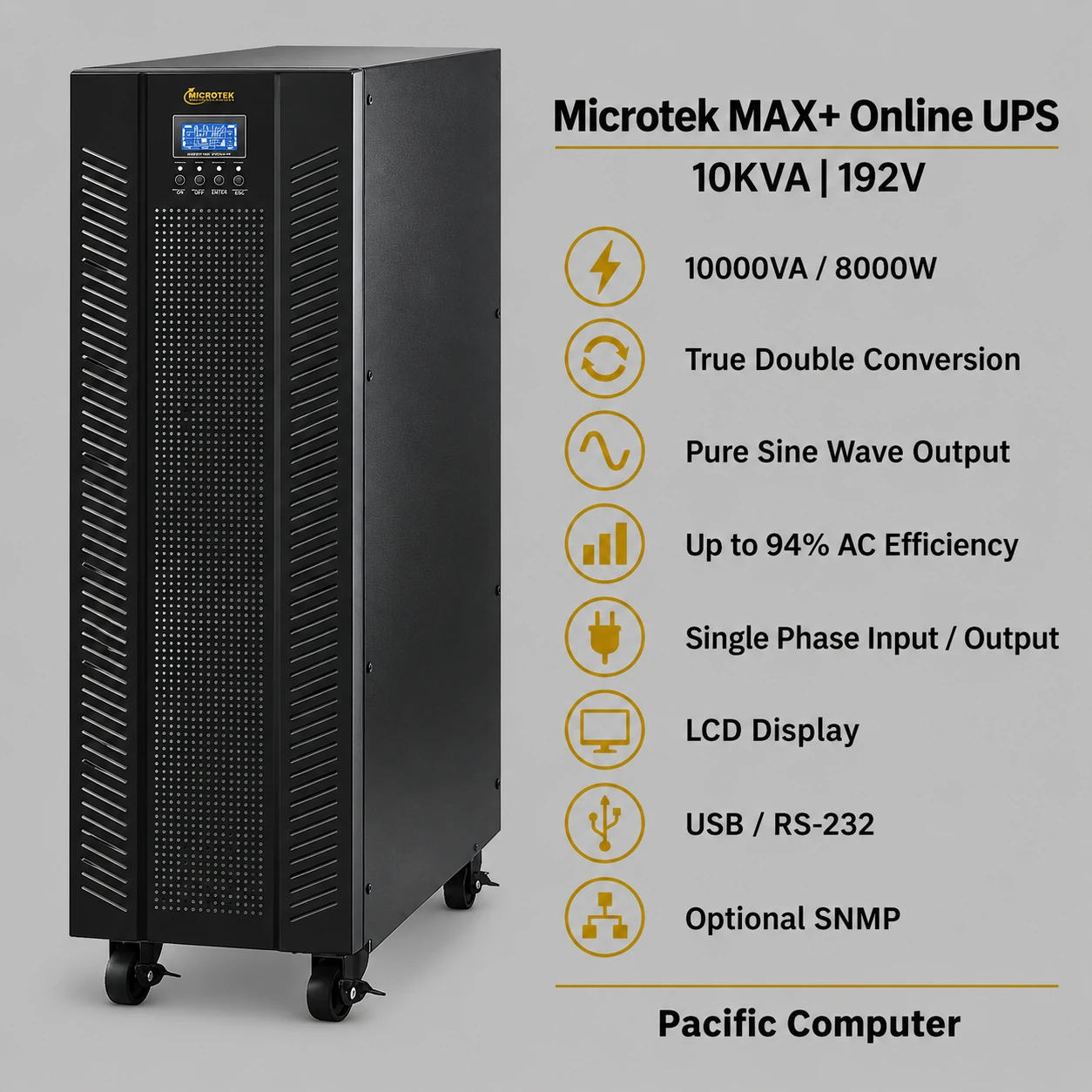

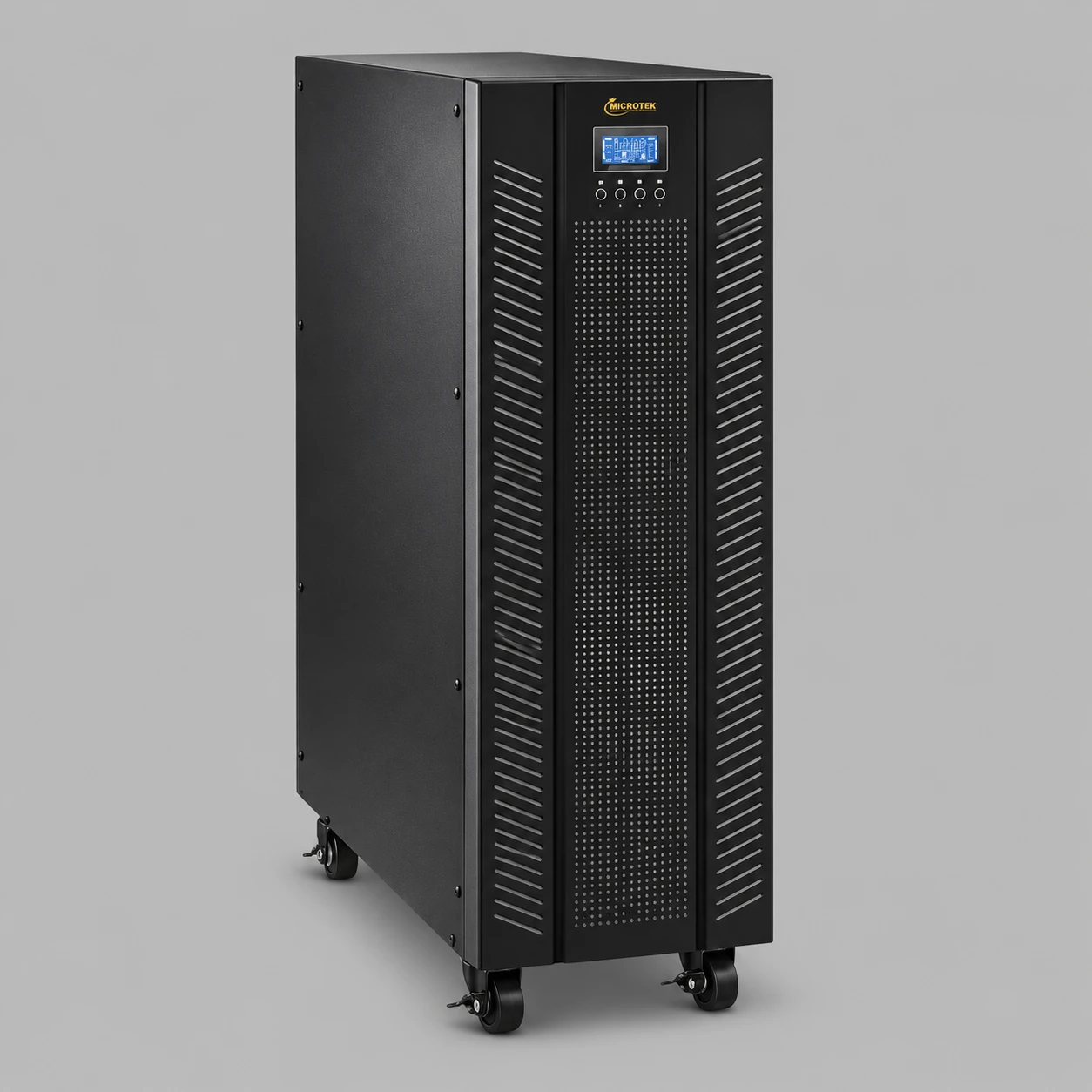

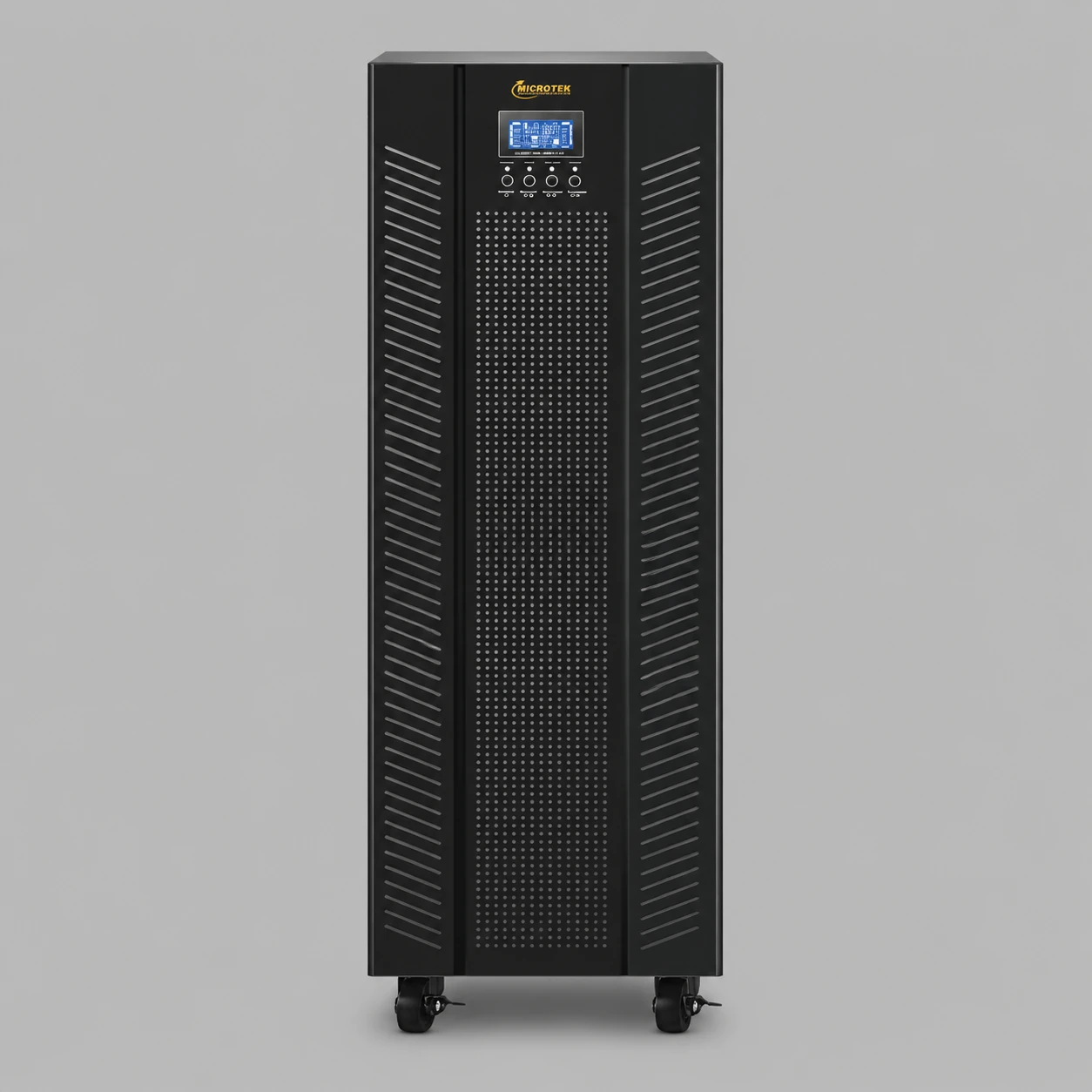

Microtek MAX+ Online UPS 10KVA 1PH:1PH 192V
Microtek MAX+ Online UPS 10KVA 1PH:1PH 192V
Microtek MAX+ Online UPS 10KVA 1PH:1PH 192V

Microtek MAX+ Online UPS 10KVA 1PH:1PH 192V

Original price was: ₹106,490.00.Current price is: ₹86,693.00.

  • -19%
Rated 0 out of 5
(0 customer reviews)

In stock

  • 10KVA / 8000W capacity with single-phase input and output.
  • True double-conversion technology with pure sine wave output.
  • Up to 94% efficiency in AC mode.
  • Default 192V DC configuration, adjustable to 216V or 240V DC.
  • Zero transfer time from AC to battery mode.
  • LCD display with RS-232 / USB communication and optional SNMP.
  • Generator compatible with ECO mode and Emergency Power Off.
Add to Wishlist
|
Add to Compare
Categories: , Brand:

Description

The Microtek MAX+ Online UPS 10KVA 1PH:1PH 192V provides power backup and voltage conditioning for high-capacity equipment. True double-conversion technology, DSP control and IGBT-based PWM technology deliver pure sine wave output, while Advanced Battery Management supports battery life and charging.
Its LCD displays UPS status, load, battery level and electrical readings. Adjustable battery configurations, maintenance and static bypass, generator compatibility and optional SNMP support flexible power management.

SpecificationDetails
BrandMicrotek
SeriesMAX+
ModelOnline UPS 10KVA 1PH:1PH 192V
CategoryOnline UPS
Rated Capacity10000VA / 8000W
PhaseSingle-phase input / Single-phase output
TechnologyTrue double-conversion with DSP control
Output WaveformPure sine wave
Battery TypeVRLA / SMF
DisplayLCD
CommunicationRS-232 or USB; optional SNMP
Net Weight33 kg
ParameterDetails
Nominal Input Voltage208 / 220 / 230 / 240V AC
Input Voltage Range110–300V AC +3% at 50% load; 176–300V AC +3% at 100% load
Input Frequency Range46–54Hz
Input Power Factor>0.99 at 100% load
Input Harmonic Distortion<4% at 100% load; <6% at 50% load
Output Power FactorDefault 0.8; optional 0.9; unity with 20-battery option
Battery-Mode Voltage Regulation+1%, as supplied
Output Frequency46–54Hz synchronized; 50Hz +0.1Hz in battery mode, as supplied
Current Crest Ratio3:1 maximum
Output Harmonic Distortion<1% with linear load; <4% with non-linear load
AC-to-Battery Transfer TimeZero
Inverter-to-Bypass Transfer TimeZero
EfficiencyAC mode: up to 94%; battery mode: 91%
DC VoltageDefault 192V DC; adjustable to 216V / 240V DC
Battery ConfigurationDefault 16 batteries; adjustable to 18 or 20
Maximum Charging Current4A
Charging Voltage(13.65V DC × battery count) +1%, as supplied
AC-Mode Overload Capability100–110%: 10 minutes; 110–130%: 1 minute; >130%: 1 second
Battery-Mode Overload Capability100–110%: 30 seconds; 110–130%: 10 seconds; >130%: 1 second
Operating Humidity20–90% RH, non-condensing
Noise LevelLess than 58dB at 1 metre
Operating FeaturesECO mode; 50Hz / 60Hz frequency converter mode; inbuilt Time Delay Relay
BypassMaintenance bypass and static bypass available
Protection FeaturesEmergency Power Off; inbuilt surge protection with OVCD available
Parallel RedundancyOptional N+X
Generator CompatibilitySupported
LCD InformationUPS status, load level, battery level, input/output voltage and frequency, discharge timer and fault status
Monitoring Software CompatibilityWindows 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10, Linux and Mac
Optional SNMPPower management through an SNMP manager and web browser



1. What is the rated output capacity? +

The listed capacity is 10000VA / 8000W with a default output power factor of 0.8. Unity output power factor is specified for the 20-battery option.

2. Can the battery configuration be adjusted? +

Yes. It supports 16 batteries at 192V DC, 18 batteries at 216V DC or 20 batteries at 240V DC.

3. Does it support remote monitoring? +

RS-232 or USB communication supports monitoring software. Optional SNMP enables management through an SNMP manager and web browser.

4. What is the backup time? +

Backup time depends on battery capacity and connected load. A confirmed runtime and battery inclusion details were not supplied.
