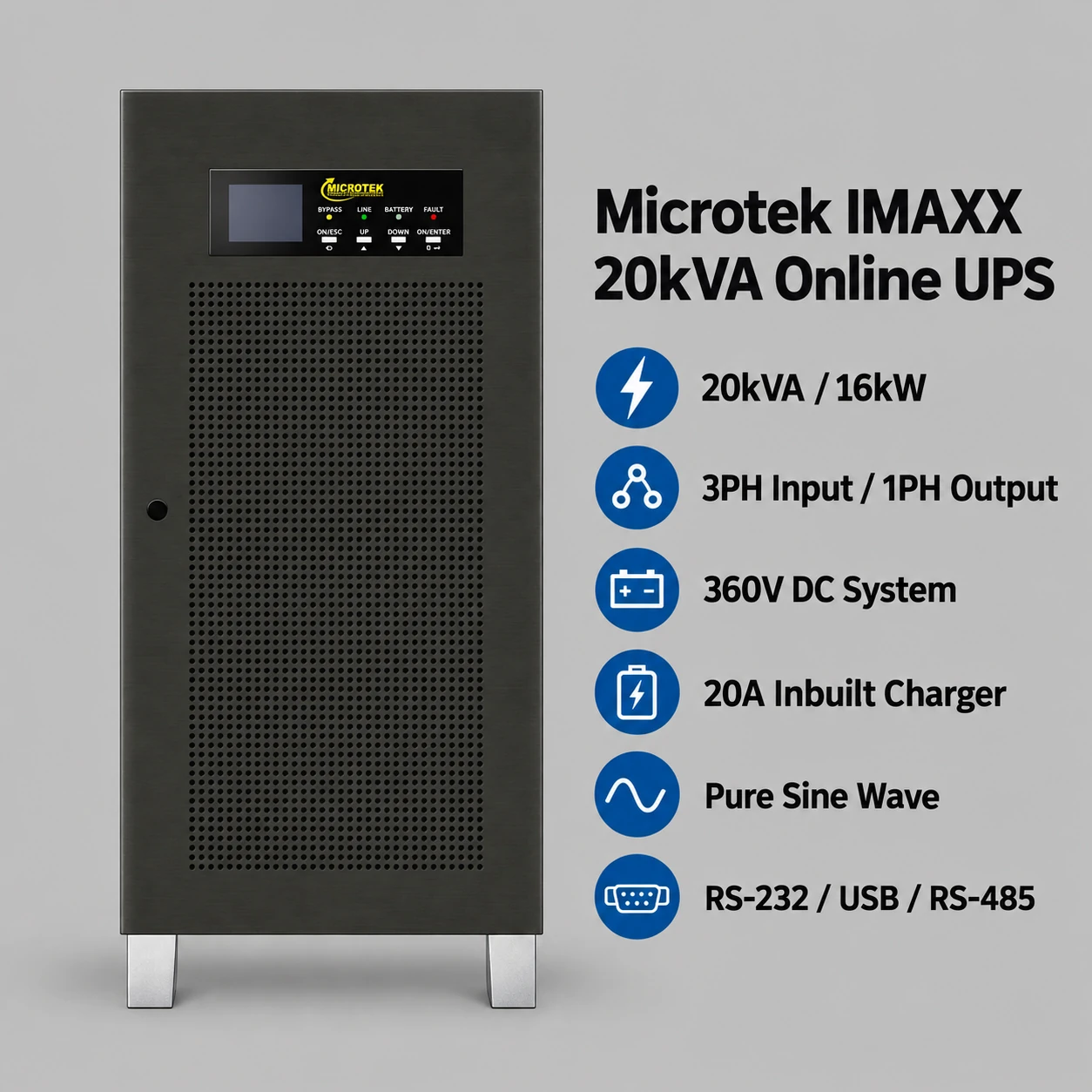

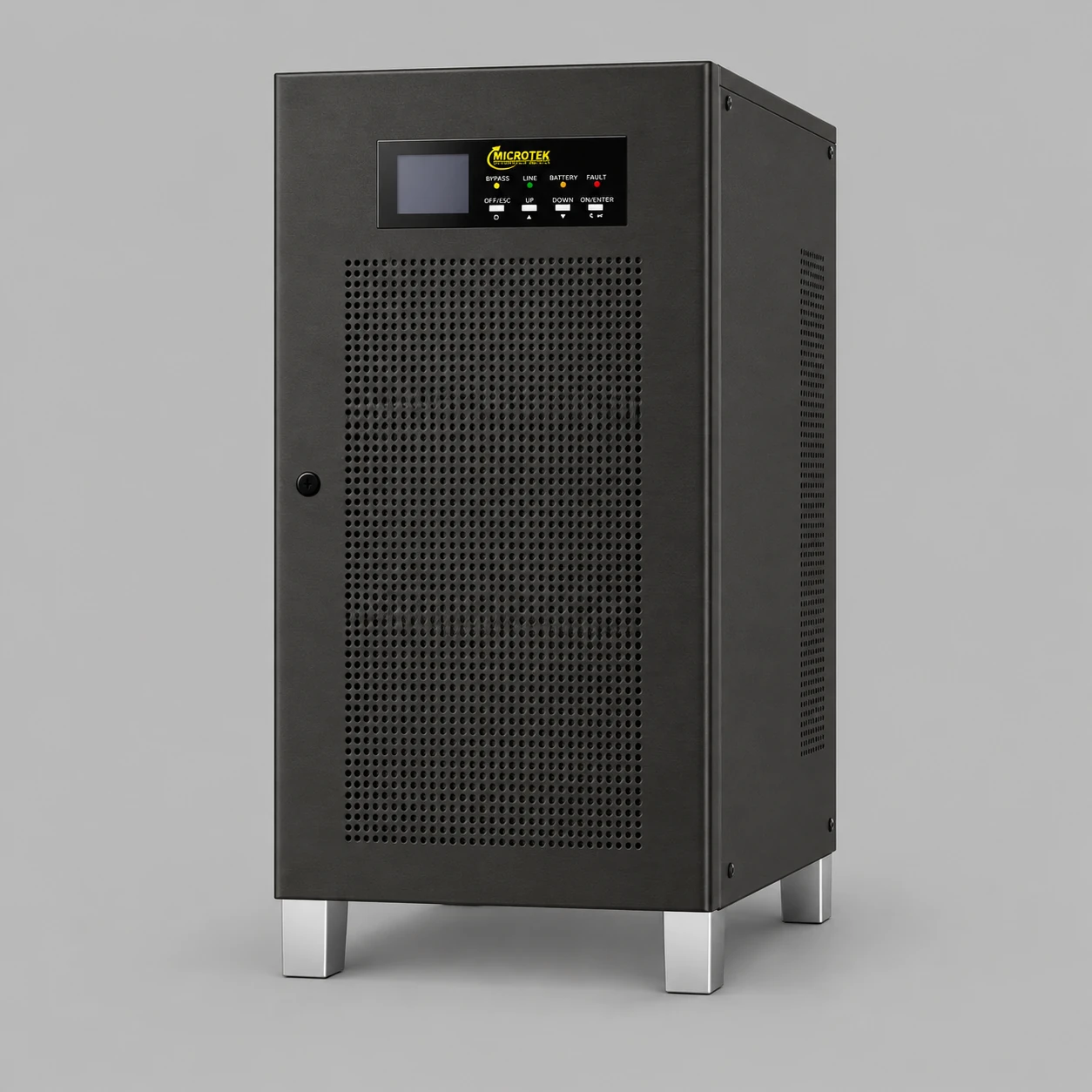

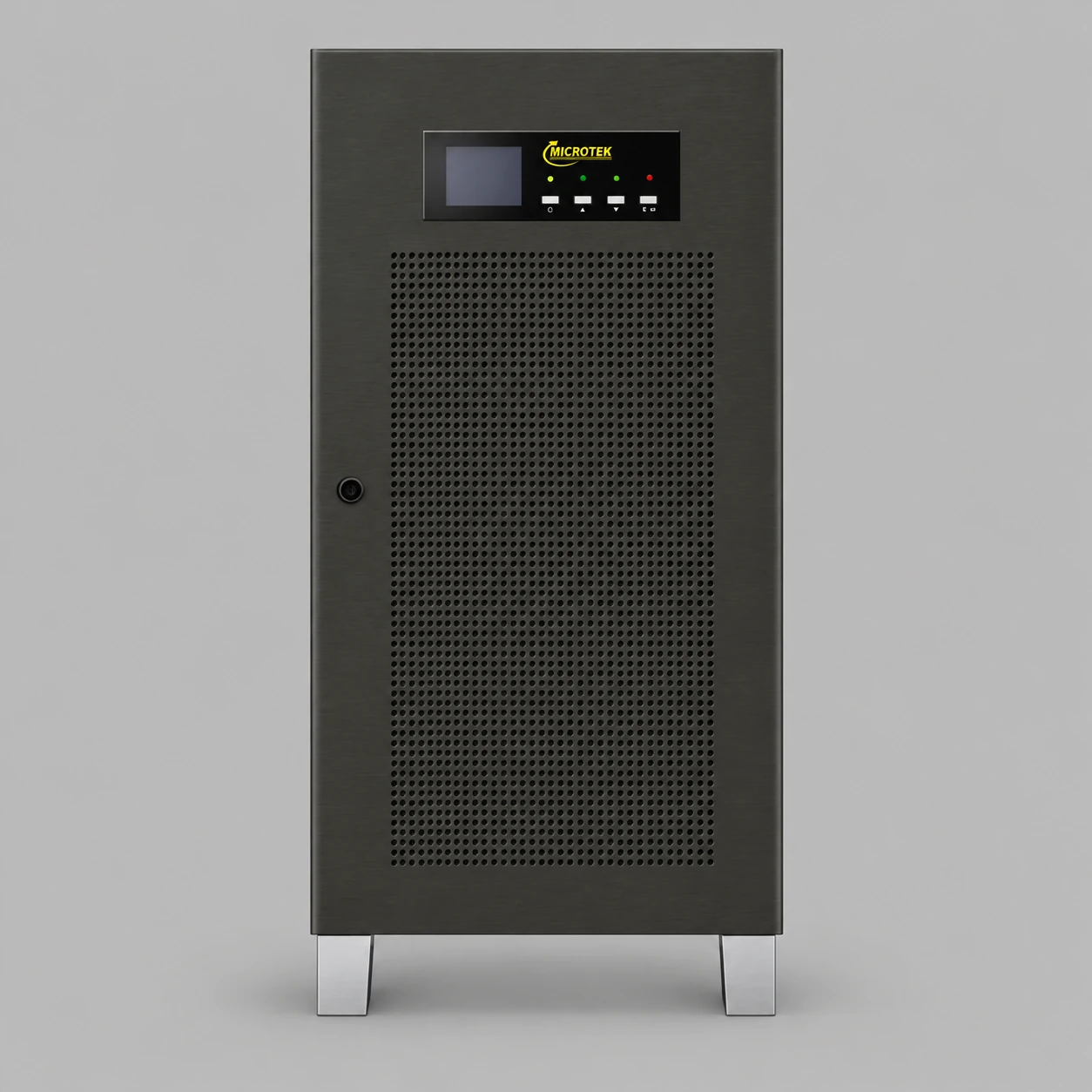

Microtek IMAXX 20kVA Online UPS, 3PH:1PH, 360V
Microtek IMAXX 20kVA Online UPS, 3PH:1PH, 360V
Microtek IMAXX 20kVA Online UPS, 3PH:1PH, 360V

Microtek IMAXX 20kVA Online UPS, 3PH:1PH, 360V

Original price was: ₹311,890.00.Current price is: ₹234,269.00.

  • -25%
Rated 0 out of 5
(0 customer reviews)

In stock

  • 20kVA / 16kW capacity with three-phase input and single-phase output.
  • 360V DC system, adjustable from 348V to 384V.
  • DSP technology with IGBT-based inverter and pure sine wave output in battery mode.
  • Inbuilt 20A charger supporting 29, 30, 31 or 32 batteries.
  • Smart LCD display, maintenance bypass and static bypass switches.
  • RS-232, USB and RS-485 ports with optional SNMP support.
  • Generator compatible with hot standby, cold start and parallel redundancy.
Add to Wishlist
|
Add to Compare
Categories: , Brand:

Description

The Microtek IMAXX 20kVA Online UPS provides 16kW rated output capacity for commercial power-backup requirements. Its three-phase input and single-phase output configuration combines DSP control, an IGBT-based inverter and pure sine wave output in battery mode.
The adjustable 360V DC system supports flexible battery configurations, while an inbuilt 20A charger manages battery charging. Maintenance bypass, static bypass, communication ports and optional SNMP support simplify operation and monitoring. Conformal-coated PCB assemblies, battery reverse-polarity protection and over-temperature protection support operation in demanding environments.

SpecificationDetails
BrandMicrotek
SeriesIMAXX
Product TypeOnline UPS
Rated Capacity20kVA / 16kW
Phase ConfigurationThree-phase input / Single-phase output
DC Voltage System360V DC
Adjustable DC Range348–384V DC
DisplaySmart LCD
Battery Configuration29, 30, 31 or 32 batteries
Inbuilt Charger20A
Communication PortsRS-232, USB and RS-485
Country of OriginIndia
ParameterDetails
Control TechnologyDSP
Inverter TechnologyIGBT-based
Nominal Input Voltage380 / 400 / 415V AC, three-phase with neutral and ground
Configurable Output Voltage208 / 220 / 230V AC
AC Voltage Regulation±1% in battery mode
Battery-Mode WaveformPure sine wave
AC-Mode EfficiencyGreater than 88%
Battery-Mode Efficiency90%
Output FrequencyFixed at 50Hz or synchronized with input frequency
CVCF OperationSupported without batteries
Phase SequenceReverse phase-sequence immunity
Neutral OperationNo-neutral operation supported
Bypass SwitchesBuilt-in maintenance bypass and static bypass
Startup FeaturesHot standby and cold start
Parallel RedundancySupported
Battery ProtectionReverse-polarity protection
Temperature ProtectionOver-temperature indication and protection
PCB ProtectionConformal-coated assemblies
Input FilterOptional filter for 0.9 power factor
Network MonitoringOptional SNMP card
AlarmMute mode available
Generator CompatibilitySupported; supplied guidance specifies generator capacity at 2.5 times UPS capacity
Does this UPS provide three-phase output? +

It accepts three-phase input and provides single-phase output.

How many batteries does it support? +

The supplied specifications list configurations of 29, 30, 31 or 32 batteries, with a DC voltage range of 348–384V.

Which communication ports are available? +

This 360V model includes RS-232, USB and RS-485 ports. SNMP monitoring requires an optional card.

Can it operate with a generator? +

Yes. The supplied guidance specifies a standby generator capacity of 2.5 times the UPS capacity.
