Description

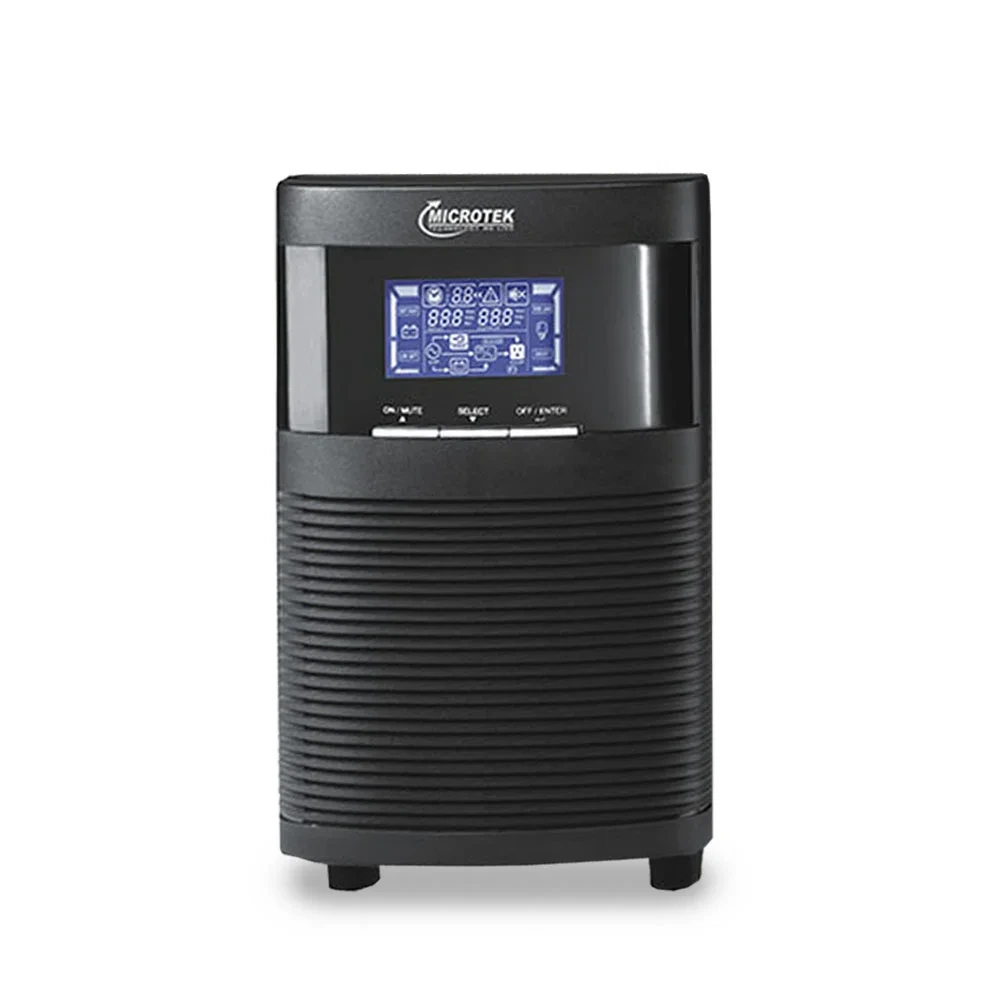

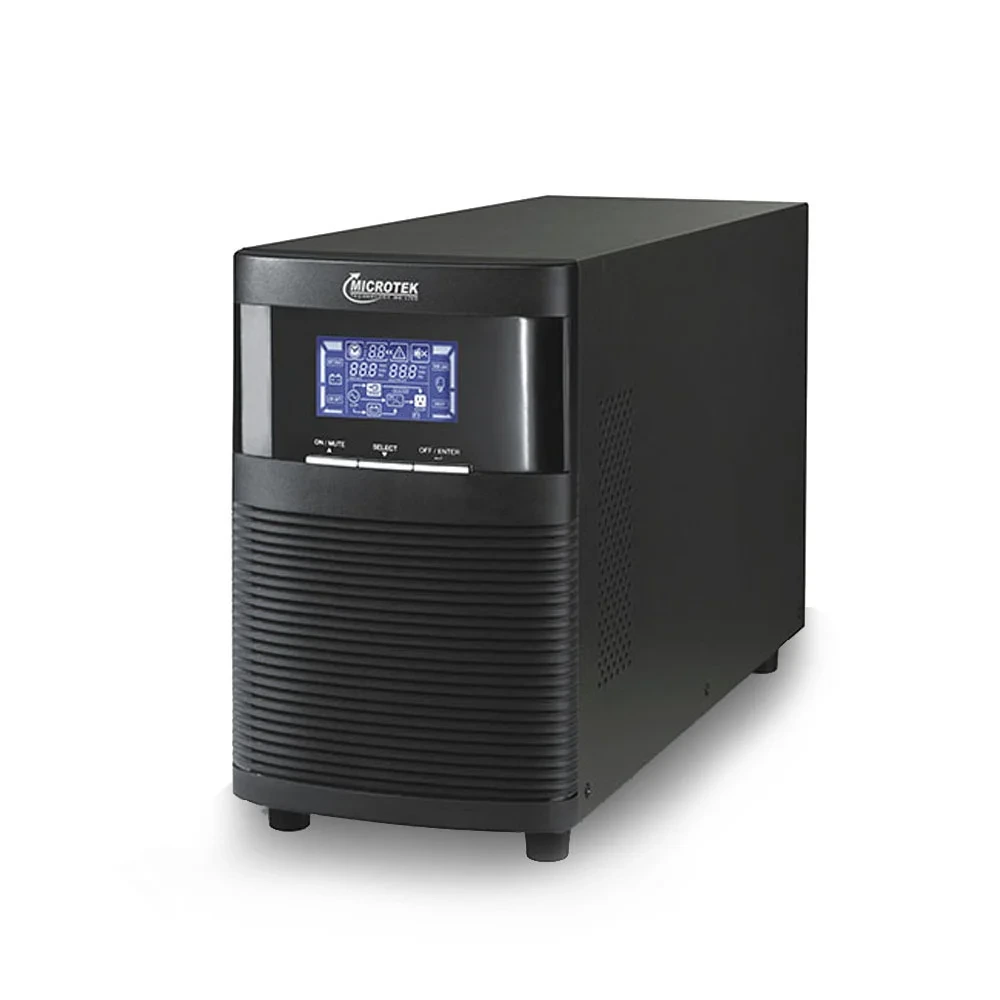

The Microtek Online UPS E² Series 1KVA 24VDC-IB is a high-frequency online UPS designed to provide uninterrupted and stable power for critical equipment such as computer networks, servers, cyber cafés, ATM machines, CCTV systems and other sensitive electronic devices.
Built on high-frequency double-conversion IGBT technology, the E² Series continuously conditions incoming power to deliver a stable pure sine wave output. Its static bypass system improves reliability, while the configurable output voltage allows the UPS to accommodate different equipment requirements.
The UPS features an inbuilt OVCD (Over Voltage Cut-Off Device) with surge protection, Advanced PFC technology, over-temperature protection and generator compatibility. A Smart LCD display provides real-time operating information for easier monitoring.
The 1KVA model delivers a rated capacity of 800 watts and uses a 24V DC battery system with two 12V 9Ah SMF batteries built into the unit, making it a compact power backup solution for professional and business environments.
Optional features including SNMP network management, isolation transformer, alarm mute mode and external charging support provide additional flexibility for specialized installations.
Salient Features
- High-Frequency Double Conversion: Provides continuous conditioned power for sensitive electronic equipment.
- IGBT Technology: Designed for efficient and reliable online UPS operation.
- Inbuilt OVCD: Over Voltage Cut-Off Device provides additional protection against excessive input voltage.
- Surge Protection: Helps protect connected equipment against power surges.
- Static Bypass: Improves system reliability by providing an alternate power path when required.
- Smart LCD Display: Provides real-time UPS operating and status information.
- Pure Sine Wave: Delivers clean sine wave output while operating in battery mode.
- Advanced PFC: Input power factor greater than 0.99 at full load.
- Generator Compatible: Suitable for installations using generator backup.
- Configurable Output: Supports 200V, 208V, 220V, 230V and 240V AC output settings.
- Temperature Protection: Includes over-temperature indication and protection.
- EMI Noise Filter: Helps reduce electrical interference.
- SNMP Support: Optional SNMP card enables network-based UPS management.
- Isolation Transformer: Available as an optional configuration.
- External Charger: Optional external charger support up to 8A.
- Frequency Control: Output can be fixed at 50Hz or synchronized with input frequency.
