Description

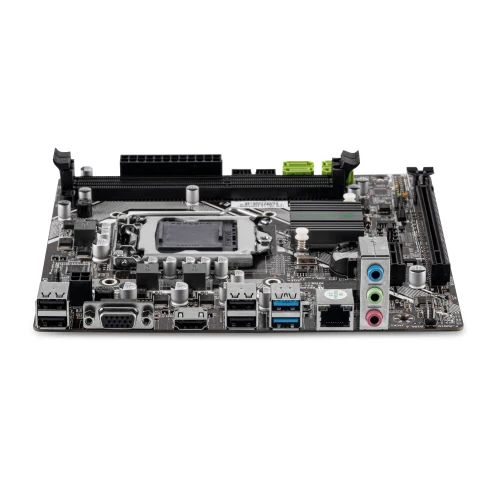

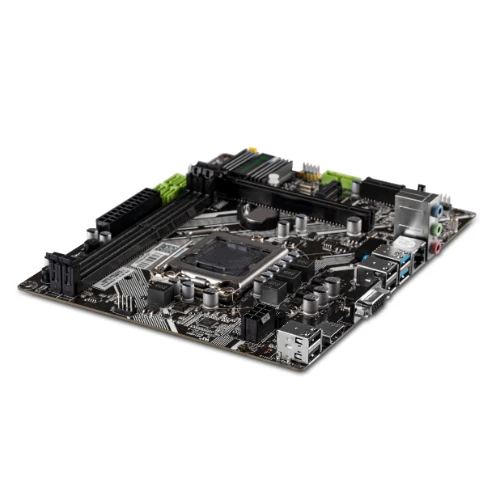

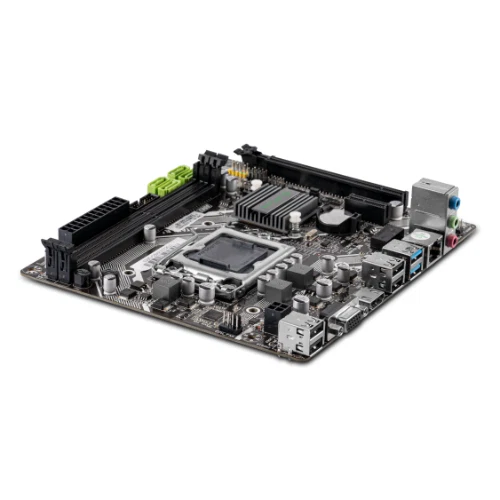

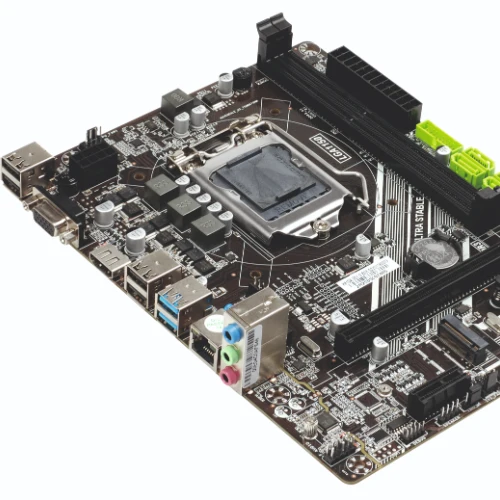

The H81 Motherboard NVMe is a reliable Micro-ATX motherboard designed for desktop systems based on Intel 4th Generation processors. Featuring an LGA 1150 socket and Intel H81 chipset, it supports compatible Intel Core i7, Core i5, Core i3, Pentium, and Celeron processors.
The motherboard supports DDR3 memory through two DIMM slots, with supported memory speeds of 1066MHz, 1333MHz, and 1600MHz. This makes it suitable for everyday desktop computing, office applications, home use, and general-purpose systems.
For storage, the motherboard features a dedicated M.2 NVMe slot for compatible NVMe SSDs, providing a high-speed storage option for the operating system and applications. It also provides SATA ports for traditional SATA HDDs and SSDs, allowing users to configure additional storage according to their requirements.
For display connectivity, the motherboard includes both HDMI and VGA outputs. A PCI Express x16 slot is also provided for installing a compatible dedicated graphics card.
Connectivity includes USB 3.0 and USB 2.0 ports, along with Realtek 100 Mbps LAN for wired networking. The integrated Realtek 662 audio chipset provides flexible 6-channel audio support.
With its compact Micro-ATX form factor, flexible storage connectivity, DDR3 support, and Intel 4th Generation processor compatibility, the H81 Motherboard NVMe is a practical choice for desktop upgrades, replacement systems, office PCs, home computers, and budget PC builds.
Processor Compatibility
The motherboard uses the LGA 1150 socket and supports compatible Intel 4th Generation desktop processors, including:
- Intel Core i7
- Intel Core i5
- Intel Core i3
- Intel Pentium
- Intel Celeron
Chipset
- Intel H81 Chipset
- Designed for compatible Intel 4th Generation desktop platforms
- AMI BIOS for system configuration and operation
Memory
- 2 × DDR3 DIMM slots
- Supports 1066MHz, 1333MHz and 1600MHz DDR3 memory
- Suitable for standard desktop DDR3 memory configurations
Storage
The motherboard provides both M.2 NVMe and SATA storage connectivity.
M.2 NVMe:
- Dedicated M.2 slot for compatible NVMe SSD
- Provides a high-speed storage interface
- Suitable for operating system, software, and frequently accessed files
SATA:
- SATA ports for compatible SATA HDDs and SATA SSDs
- Suitable for additional storage capacity
Important: NVMe and SATA are different storage interfaces. An NVMe SSD uses the M.2 NVMe slot, while SATA HDDs and SATA SSDs connect through the SATA ports.
Graphics & Display
- 1 × HDMI port
- 1 × VGA port
- 1 × PCI Express x16 slot
- Supports compatible dedicated graphics cards through the PCI Express x16 slot
USB Connectivity
The motherboard provides both high-speed and standard USB connectivity:
USB 3.0
- 4 × USB 3.0 ports
- 2 × rear-panel ports
- 2 × onboard ports through the internal connector
USB 2.0
- 6 × USB 2.0 ports
- 4 × rear-panel ports
- 2 × onboard ports
Networking
- Realtek LAN chipset
- 100 Mbps Ethernet
- RJ45 LAN port for wired network connectivity
Audio
- Integrated Realtek® 662 audio chipset
- Flexible 6-channel audio support
- 3 × rear-panel audio jacks
Rear Panel Connectivity
The rear I/O panel includes:
- 1 × VGA port
- 1 × HDMI port
- 1 × RJ45 LAN port
- 2 × USB 3.0 ports
- 4 × USB 2.0 ports
- 3 × audio jacks
Onboard Connectors
The motherboard includes:
- 1 × USB 3.0 19-pin connector
- 1 × USB 2.0 connector
- SATA storage connectors
- 1 × NVMe slot
- CPU/SYS fan connectors
- 1 × 24-pin ATX power connector
- 1 × 4-pin 12V ATX power connector
- Front audio connector
- Front panel connector
Expansion
- 1 × PCI Express x16 slot
- Suitable for compatible graphics cards and other PCIe expansion hardware
Form Factor
- Micro-ATX
- Designed for compatible Micro-ATX and suitable desktop cabinets
Warranty
3 Years Warranty
